PRODUCT DESCRIPTION:

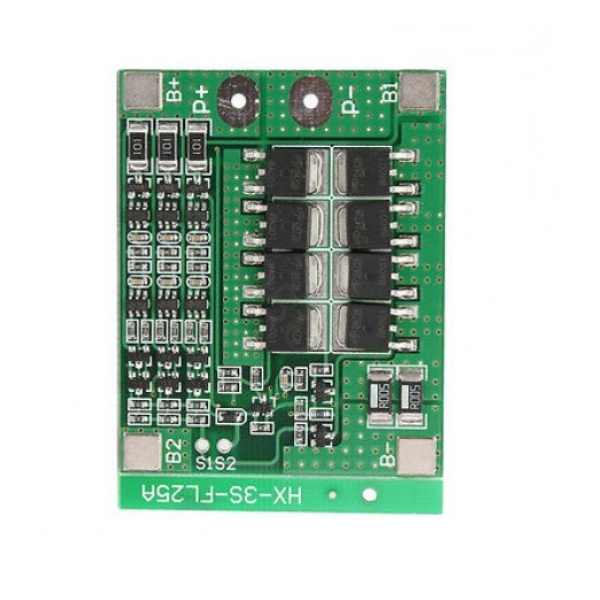

Lithium-Ion charge protection circuit comes with over-charge, over-discharge, over-current and short circuit protection, for a variety of various shapes 3.7V lithium Ion batteries. BW-3SJH-25A is Small size, suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is absolutely safe and reliable.
FEATURES:
Continuous discharge current: 25A
Instantaneous discharge current: 75A
Charge Voltage: 12.6V
Overcurrent protection Charge Current: 25A(max)
Operating Current: less than 30uA
Overcharge Detection Voltage: 4.28 ± 0.05V
Overcharge Protection Delay: 0.5sec
Overcharge release voltage: 4.08 ± 0.05V
Power balance detection voltage: 4.2 ± 0.05V
Battery balance release voltage: 4.2 ± 0.05V
Over discharge detection delay: 0.1sec
Short-Circuit Detection Delay: 250uS
