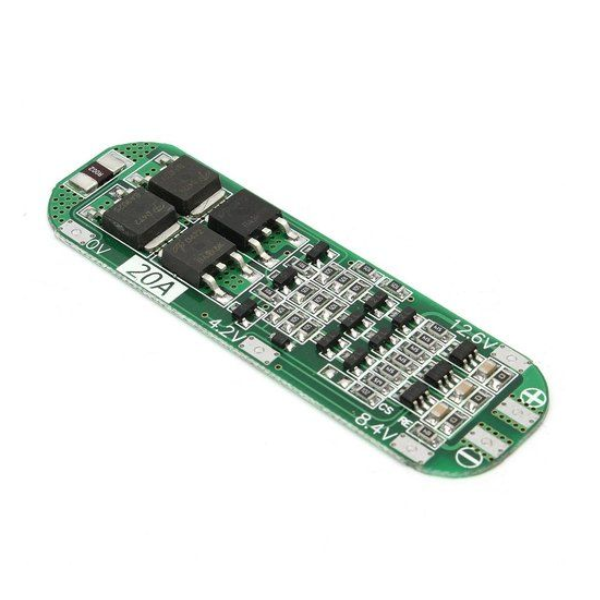

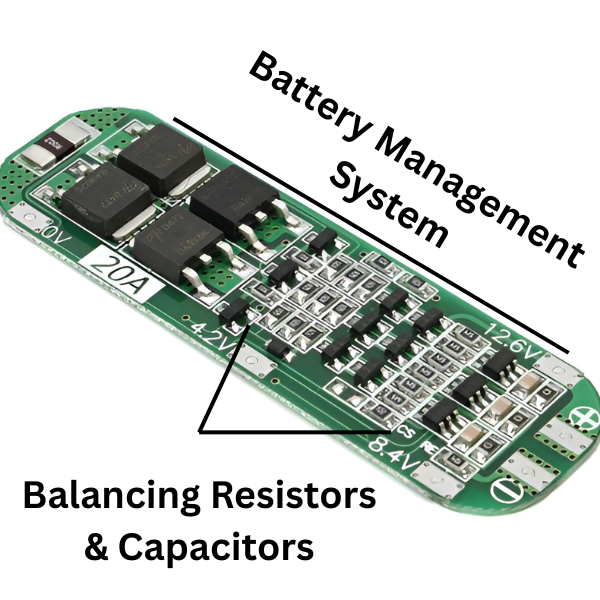

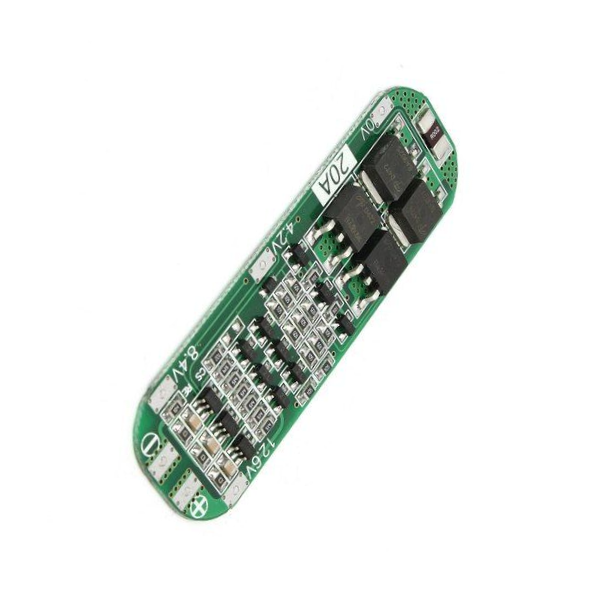

PRODUCT DESCRIPTION:
Lithium-Ion charge protection circuit comes with over-charge, over-discharge, over-current and short circuit protection, for a variety of various shapes 3.7V lithium Ion batteries. HX-3S-01 is Small size, suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is absolutely safe and reliable.
FEATURES:
Short circuit protection.
Overcharge protection.
Over-discharge protection
Overcurrent protection
Can be applied to various 3.7V lithium core.
Compact size and lightweight
Ensure the security of battery pack
SPECIFICATION:
Size: approx.50x16x1mm.
Overcharge detection voltage: 4.25-4.35V±0.05V
Over-discharge detection voltage: 2.3-3.0V±0.05V
Maximum discharge current: 10A
Maximum operating current: 5-8A
Operating temperature: -40~50℃
Storage temperature: -40~80℃
Effective life: more than 30,000 hours
Internal resistance: less than 60mΩ
Short circuit protection: protection, delay self-recovery.
