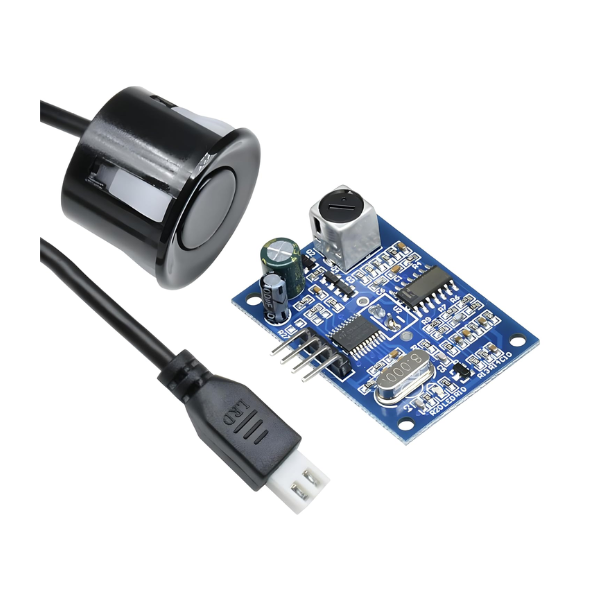

Water Proof Ultrasonic Sensor
(0 Reviews)
In stock
Category: Others Sensors
SKU: 1908
MRP Price:
Discounted Price:
₹578
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
1) Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions.
2) Small size, easy to use.
3) Operating Voltage: 5 V.
4) Sonar Sensing Range: 25-450 cm.
5) Max. Sensing Range: 450 cm.
Description:
This water proof ultrasonic sensor has a good performance and almost the same usage of HC-S04 module. Using IO port TRIG trigger measuring distance, high level signal for at least 10uS.Module automatically sends eight 40kHz square wave, automatically detects whether there is return signal. Integrated with wire enclosed water-resistant sensor, suitable for wet, harsh measurement occasions. Widely used for horizontal distance measuring, obstacle avoidance, automatic control, security, industrial control, etc.
Specifications:
Working Voltage : DC5V
Total Working Current : 30mA
Blind Zone : 25cm
Max. Measuring Distance : 5m
Wave Transmit Frequency : 40kHz
Resolution Approx : 0.5cm
Angle < 50 degree
Size : 41 x 28 12.5 mm
Package Include:
1 X Water Proof Ultrasonic Sensor.
