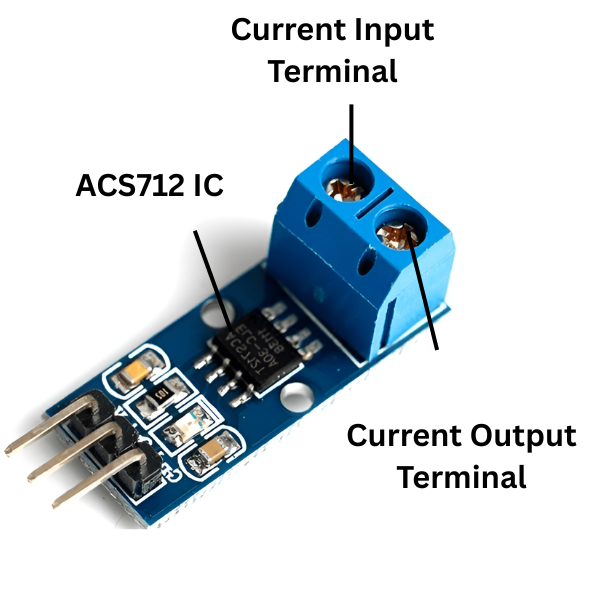

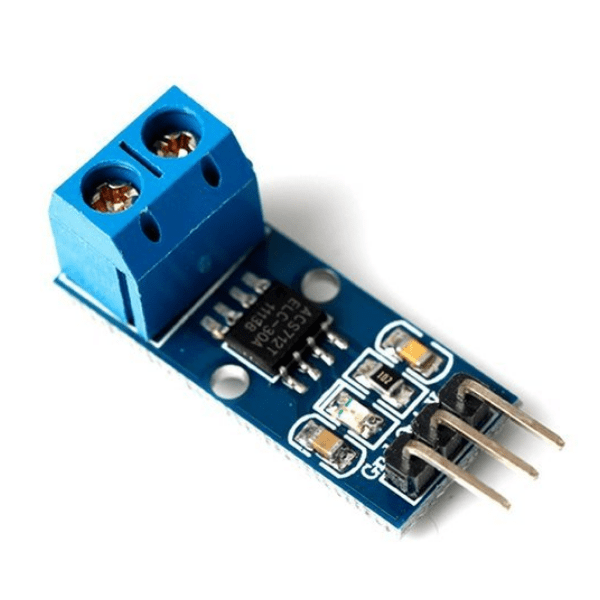

The 20A Range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.
Features :
The low-noise analog signal path
Device bandwidth is set via the new FILTER pin
5 µs output rise time in response to step input current
Small footprint, low-profile SOIC8 package
2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8
5.0 V, single-supply operation
66 to 185 mV/A output sensitivity
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
The ratiometric output from the supply voltage
Package Includes :
1 x 20A Range Current Sensor Module ACS712
