USB to UART TTL CP2102 6 Pin Module

(0 Reviews)
In stock

Category: Miscellaneous

SKU: 2028

MRP Price:
₹400 /pc 56% OFF
Discounted Price:
₹177 /pc

(20 available)

20 g

Total Price:
Bulk Order
1) Debug purpose in the Development boards.
2) Microcontroller to pc communication.
3) Programing related purpose..

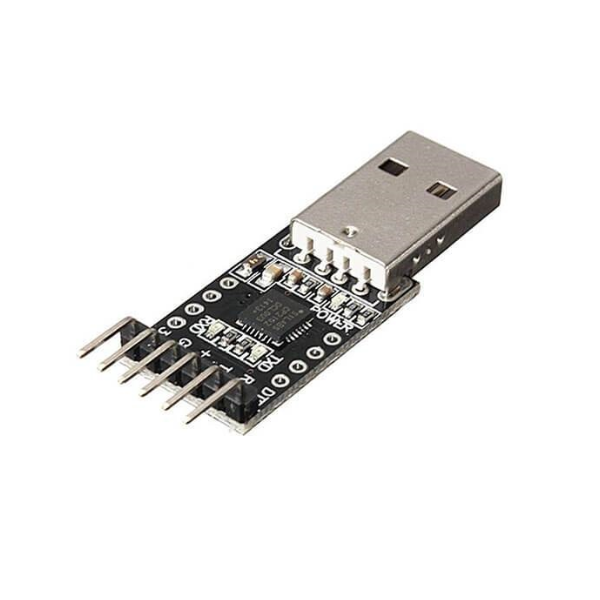

This is the CP2102(6-pin) USB 2.0 to TTL UART serial converter module. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port. ThisCP2102 doesn’t require any external oscillator, it onboard-board voltage regulator, and it even uses a reprogrammable internal EEPROM for the device description. The full hardware UART has flow control for baud rates from 300bps to 921600bps.
USB to TTL Serial Converter
USB to TTL Adapter.
Use this device to connect your PC to a serial (TTL level) device.
Uses CP2102 chipset and has a standard 0.1" pitch terminal strip to connect directly to UART or I/O pins for easy access to your MCU
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector.
6 pins for 3.3V, RST, TXD, RXD, GND & 5V.
All handshaking and modem interface signals.
Baud rates: 300 bps to 1.5 Mbps.
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
Size: 42mm X 15mm (approx) .
Weight: 4g (approx).
The USB side must be connected to PC or Mac. Other USB devices like a digital camera, scanner and printer is not allowed.
Package Include:
1 X USB to TTL Converter.
1 X Standard 4 pin 0.1" pitch female to female cable.
1 X Driver CD.
