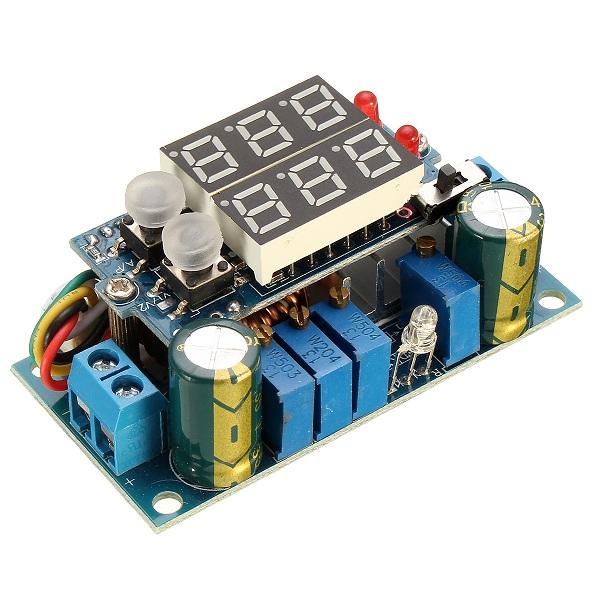

MPPT SOLAR PANEL CONTROLLER / CHARGER STEP DOWN CC/CV 5A

5A constant current and voltage non-isolated buck module, compact design, small size and high conversion efficiency, up to 95%.Has turn light control and charge indicator: red light on when charging, green light on when full charging, convenient to observe the state of charge.With LED voltmeter, press the button for 3 seconds to switch among input/output voltage and output current and output power; press for 5 seconds to turn on/off the voltmeter.With MTTP control, the setting range is 6-36V; Effectively shorten the time when charge battery by solar panel, the constant current function effectively protect battery from over-charging.With short circuit and over temperature protection; Can be used to drive large power LED, charge battery, as a vehicle power supply to charge mobile phone or a variety of digital products, etc.

Non-isolated buck module (BUCK)

Input voltage: 6-36V

Output voltage:1.25-32V continuously adjustable (default 5V)

MPPT voltage setting range: 6-36V

Output current range: 0.05-5A (default 3A)

Operating temperature: -40 to + 85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 95%

Installation: 3mm screws(4)
