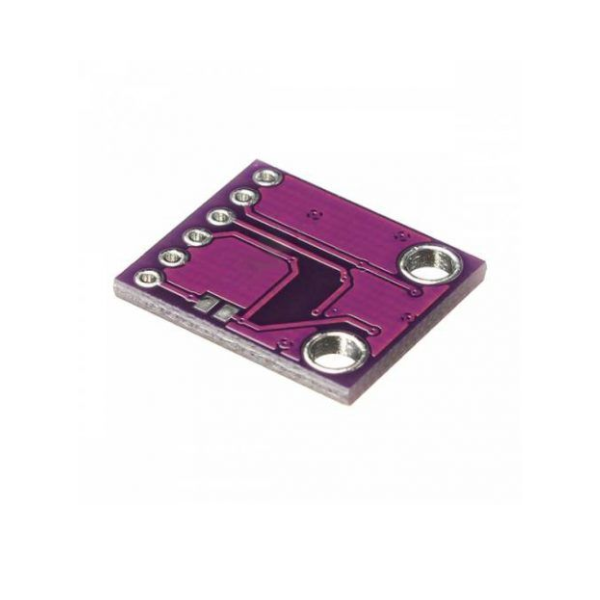

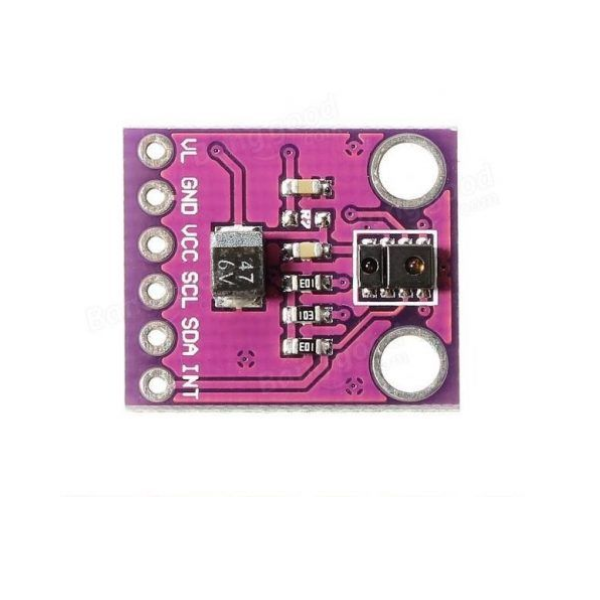

Digital Proximity and Ambient Light Sensor APDS-9930 I2C interface

• Integrated ALS and Proximity Sensor: Measures both ambient light intensity and the presence of nearby objects.
• I2C Interface: Enables easy communication with microcontrollers and other devices.
• Programmable Interrupts: Allows for event-driven operation, reducing power consumption.
• High Sensitivity: Detects low light levels, making it suitable for various applications.
• Wide Dynamic Range: Operates effectively in both bright and dim lighting conditions.
• Proximity Detection: Accurately detects objects within a specified range.
• Small Package Size: Compact and easy to integrate into various designs.

• Supply Voltage: 2.4V to 3.6V
• I2C Interface: Supports standard and fast modes
• Ambient Light Sensor:

• 16-bit resolution
• High sensitivity (down to 0.01 lux)
• Dual photodiodes for improved accuracy

• Proximity Sensor:

• Detection range up to 100mm
• Integrated IR LED for illumination

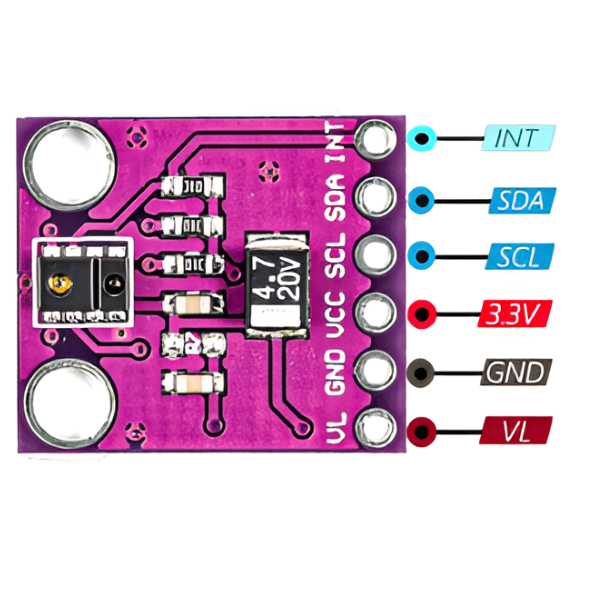

• Interrupt Pin: Dedicated pin for signaling events
• Power Consumption: Low power consumption in various modes

DATA SHEET AND USECASE

Key Features:

• Ambient Light Sensing (ALS): Utilizes dual photodiodes to approximate human eye response, offering high sensitivity with performance down to 0.01 lux. This allows operation behind darkened glass.

• Proximity Detection: Fully calibrated to detect objects up to 100 mm without the need for factory calibration. Operates effectively under various lighting conditions, from bright sunlight to dark rooms.

• Programmable Features: Includes a programmable interrupt function with upper and lower thresholds, adjustable gain settings, and a wait timer programmable from 2.7 ms to over 8 seconds.

  Low Power Consumption: Incorporates an internal state machine that enables low power mode between ALS and proximity measurements, reducing average power consumption. Sleep mode power is typically 2.2 µA.
• I²C Interface: Supports communication speeds up to 400 kHz (I²C fast-mode) and includes a dedicated interrupt pin for efficient system integration.
