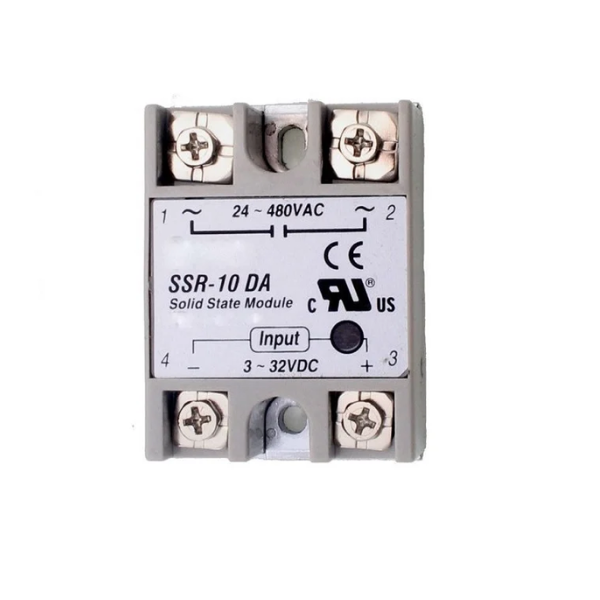

DC To AC SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A

(0 Reviews)
In stock

Category: Relay Module

SKU: 1926

MRP Price:
₹1,000 /pc 23% OFF
Discounted Price:
₹767 /pc

(20 available)


Total Price:
Bulk Order
1) Model : SSR-10DA
2) Rated Load Current (A) : 10
3) Trigger Voltage (VDC) : 3-32
4) Switching Voltage (VAC) : 24-380@10A
5) Color : Light Gray
his is DC To AC SSR-10DA Solid State Relay Module 3-32VDC/24-380VAC 10A. A solid-state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays.
One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

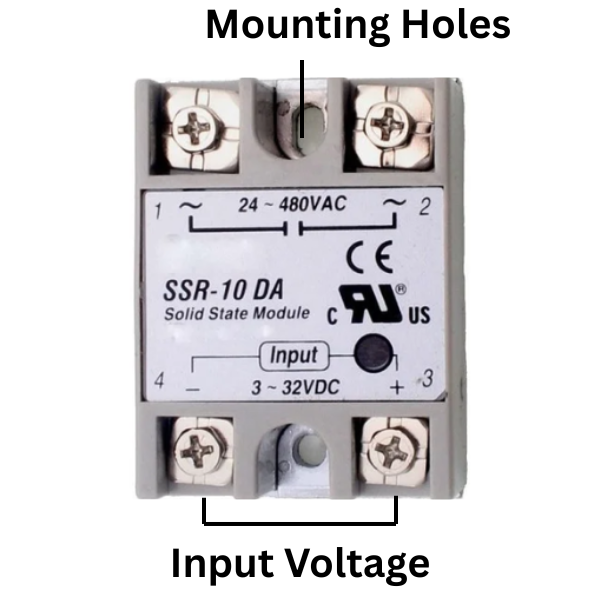

This particular SSR can switch current loads of up to 10A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
Long service life and high reliability
Reduced electromagnetic interference
Highly reliable, compact size designed to offer users maximum simplicity
Package Include:
1 x DC To AC SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A
