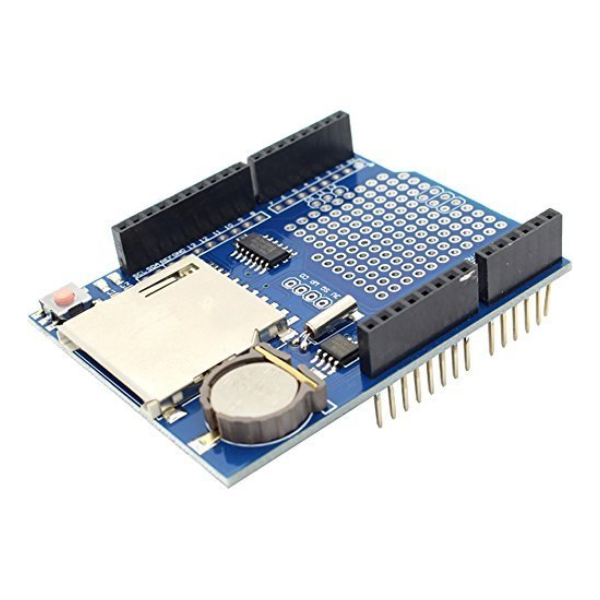

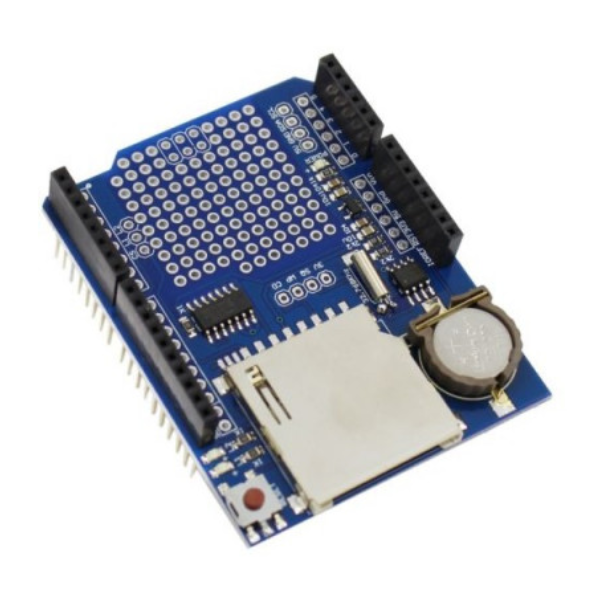

Arduino Copatible Data logger shield module

Description:

An Arduino-compatible data logger shield module is a versatile electronic board designed to extend the capabilities of your Arduino microcontroller. It provides a convenient platform for logging data from various sensors and storing it on an SD card for later analysis.

Key Features:

• SD Card Interface: Enables easy storage of logged data on a microSD card for long-term retention.
• Real-Time Clock (RTC): Accurately timestamps data points, ensuring precise time correlation.
• Analog-to-Digital Converter (ADC): Converts analog sensor signals into digital values for processing by the Arduino.
• Digital-to-Analog Converter (DAC): Generates analog signals based on digital inputs, useful for controlling external devices.
• I2C Interface: Facilitates communication with other I2C-compatible devices, such as sensors and displays.
• Prototyping Area: Offers a space for soldering additional components or connectors.
• Power Supply: Typically includes onboard voltage regulators for powering the shield and connected devices.

Applications:

• Environmental Monitoring: Tracking temperature, humidity, pressure, light, and sound levels.
• Scientific Research: Collecting data for experiments and analysis.
• Industrial Automation: Monitoring equipment performance and detecting anomalies.
• Hobby Projects: Building custom data logging devices for various applications.
• IoT (Internet of Things): Gathering sensor data for remote monitoring and control.

DATA SHEET AND USECASE

Key Features:

• SD Card Interface: Supports FAT16 and FAT32 formatted cards, allowing for extensive data storage.
• Real-Time Clock (RTC): Utilizes the DS1307 RTC module to maintain accurate time, with a battery backup that lasts for years.
• Prototyping Area: Includes a prototyping area with solder pads for adding custom circuits or sensors.

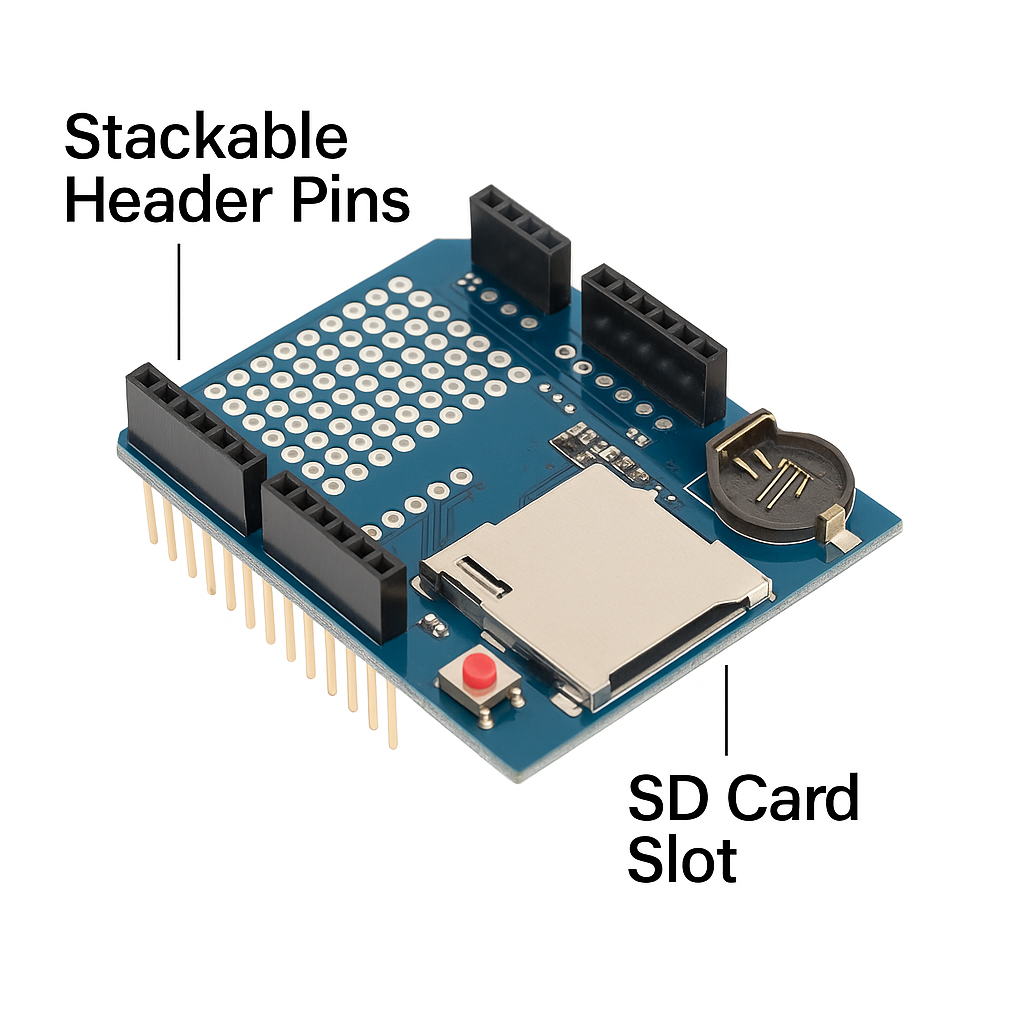

• Stackable Headers: Designed with stackable headers for easy integration with other shields and modules.
