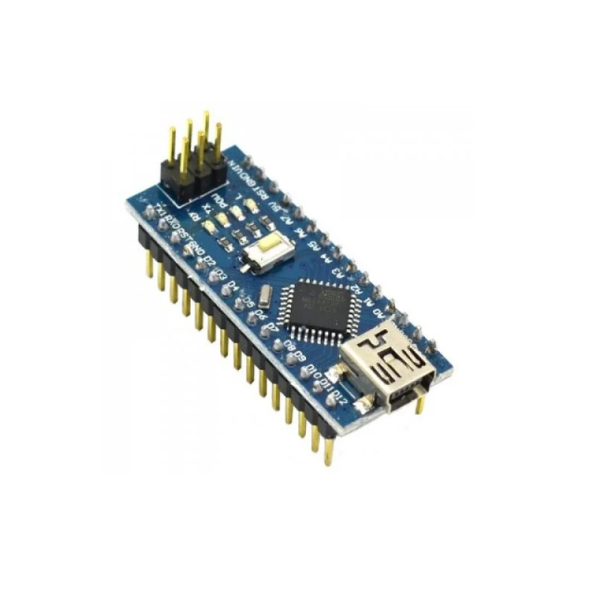

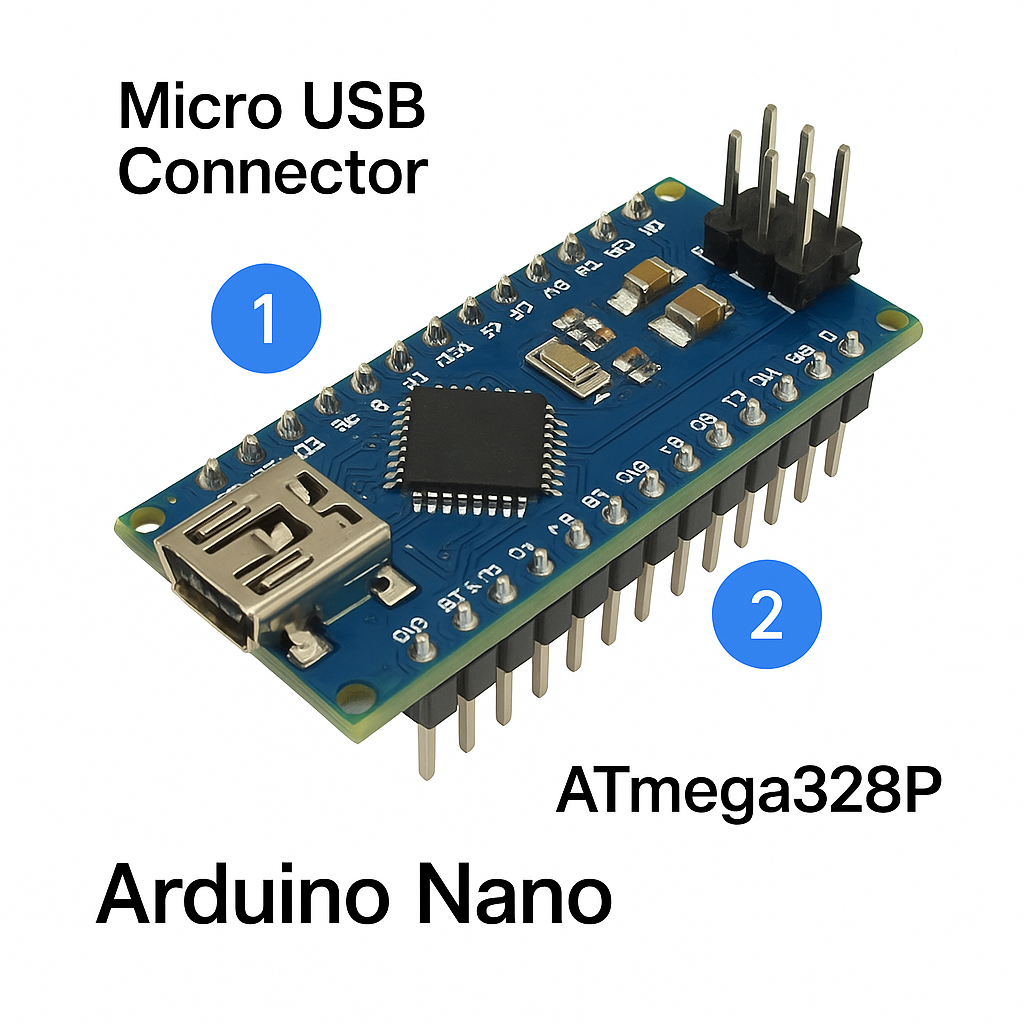

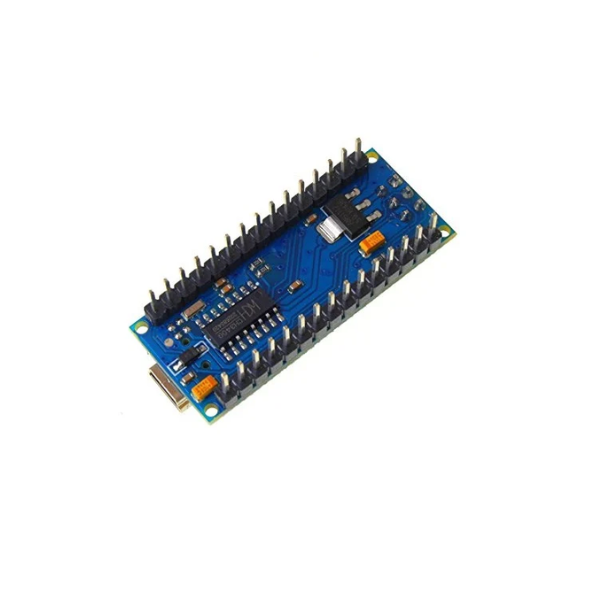

Arduino Nano R3 Board Soldered

(1 Reviews)
In stock

Category: Arduino Accessories

SKU: 1796

MRP Price:
₹600 /pc 51% OFF
Discounted Price:
₹295 /pc

(20 available)

30 g

Total Price:
Bulk Order
The Arduino Nano Board R3 with CH340 is another popular Arduino development board very much similar to the Arduino UNO They use the same Processor (Atmega328p) and hence they both can share the same program. Arduino Nano Board R3 with CH340 is a microcontroller board based on 8-bit ATmega328P microcontroller. Along with ATmega328P, it consists other components such as crystal oscillator, serial communication, voltage regulator, etc. to support the microcontroller. Arduino Uno has 14 digital input/output pins (out of which 6 can be used as PWM outputs), 6 analog input pins, a USB connection, A Power barrel jack, an ICSP header and a reset button.
1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader installed in it
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Support ISP download
Automatic reset during program download.
Microcontroller: Atmel ATmega168 or ATmega328
Operating Voltage:5V
Input Voltage:7 - 12 V (5V model)
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40 mA
Flash Memory 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM: 1 KB or 2KB
EEPROM 512 bytes (ATmega168) or 1 KB (ATmega328)
Clock Speed: 16 MHz
Package Include:
1 x Arduino Nano R3 Board Soldered
