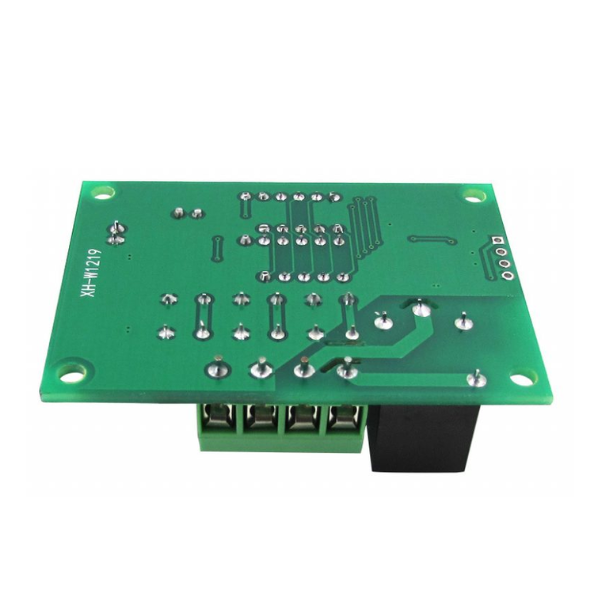

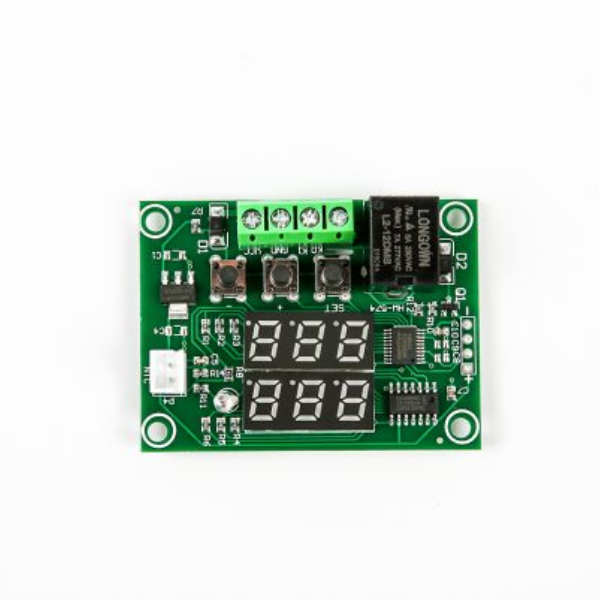

XH-W1219 12V Digital Red+Green Display Temperature Controller Module
(0 Reviews)
In stock
Category: LED
SKU: 1735
MRP Price:
Discounted Price:
₹199
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
1) Control Range: -50~110 °C
2) Control Precision: 0.1 °C
3) Measuring Input: NTC10K waterproof sensor L=0.5m.
4) High-Temperature Alarm: -49~110 °C
5) Input Voltage: DC 12V
6) Output Type: Relay output 10A (max)
7) Return Difference Setting: 0.1~30 °C
8) Delay Starting: 0-10min
9) Temperature Calibration: -10~10
Description:
This is XH-W1219 12V Digital Red+Green Display Temperature Controller Module W/ NTC Waterproof Temperature Sensor. The XH-W1219 thermostat module with its µC and I/O (sensor input, keys, double display, relay) can be re-programmed for automation tasks, and it’s easy to work with. Digital thermostat module. The temperature controller/switch with waterproof NTC probe and integrated LED display in red and green.
Note: This board is Nuvoton based.
Button Functions :
P0(Temperature Control Mode)
When first using this product; if you are using it for heating, please set H, if using it for cooling, please set C
P1(Return Difference Setting)
Long press SET key entering into the internal setting, choose P1 setting; then press SET key to achieving return difference value setting
P2(Temperature Calibration)
This function is for temperature calibration. If detection temperature and the actual temperature is different, then users can apply this function to calibrate
P3(Delay Start)
This function is for compressor cooling
P4(Set High-Temperature Alarm Value)
When the actual temperature is higher than this value, the screen will flash and sound an alarm
Package Includes:
1 x 12V Digital Red + Green Display Temperature Controller Module
1 x NTC Waterproof Temperature Sensor
