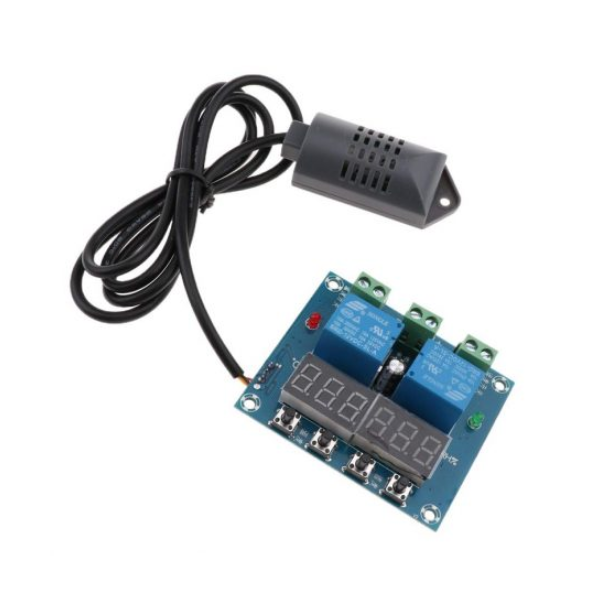

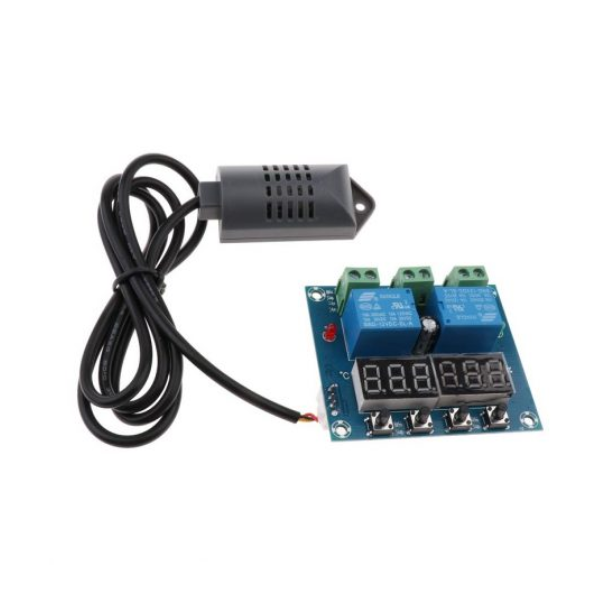

XH-M452 Temperature and Humidity Controller Module
(0 Reviews)
In stock
Category: Other Accessories
SKU: 1740
MRP Price:
Discounted Price:
₹732
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
SKU: 2519
1) Power supply: DC 12V
2) Temperature measurement range:-40~120℃
3) Humidity range：0~100%RH
4) Control precision：0.1℃ 0.1%RH
5) Test probe：Integrated sensor
Description:
Get the all-new DC 12V XH-M452 Temperature And Humidity Controller Module Digital Display. It has a very High Accuracy Dual Output Automatic Constant Temperature And Humidity Control Board.
Humidity Control
Set to start humidity: long-press the + key, start the humidity value flashing, set by + / – key launch humidity value
Set stop humidity: long press – to stop humidity value, set by + / – key to stop the humidity value
Temperature Control
Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
Setting the temperature – :Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / – key
Setting Stop temperature: long press – button, stop flashing temperature, set stop temperature by + / – key
Features:
Power supply: DC 12V
Temperature measurement range:-40~120℃
Humidity range：0~100%RH
Control precision：0.1℃ 0.1%RH
Test probe：Integrated sensor
Specification:
Model : XH-M452
Voltage : DC 12V
Temperature Range : 0% to 100%RH
Control Accuracy : 0.1°C, 0.1RH
Detector probe : Integrated sensor
Output type : Relay output
Output capacity : up to 10A
Dimensions : 65 X 55 X 25 mm
Weight : 69g (with sensor)
Package Include:
1 X XH-M452 Temperature and Humidity Controller Module.
