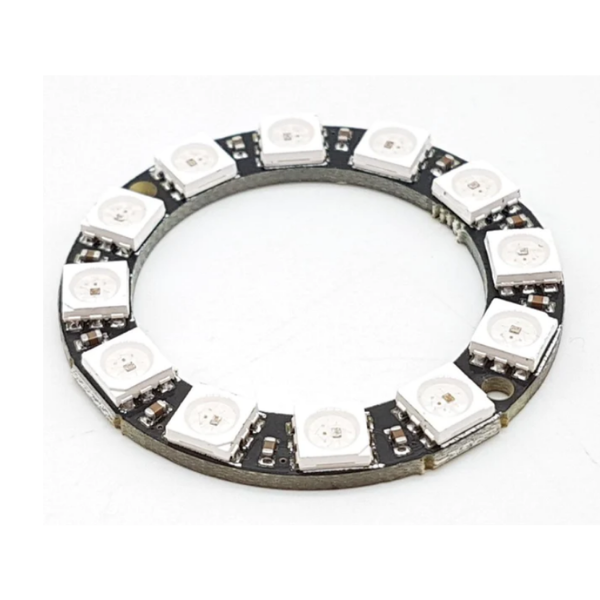

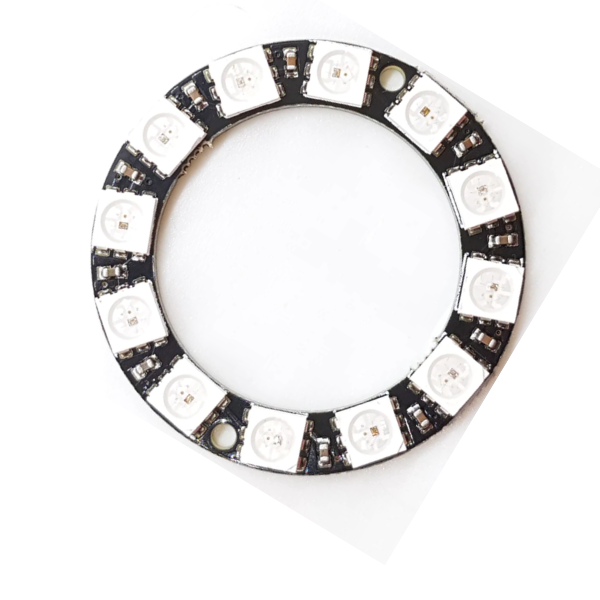

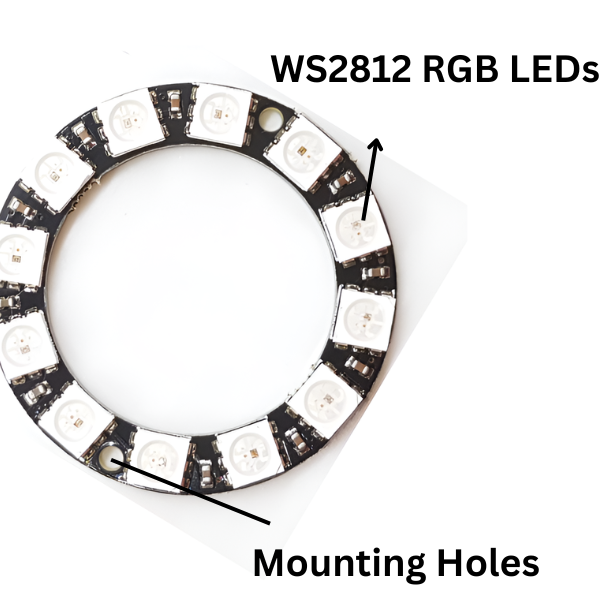

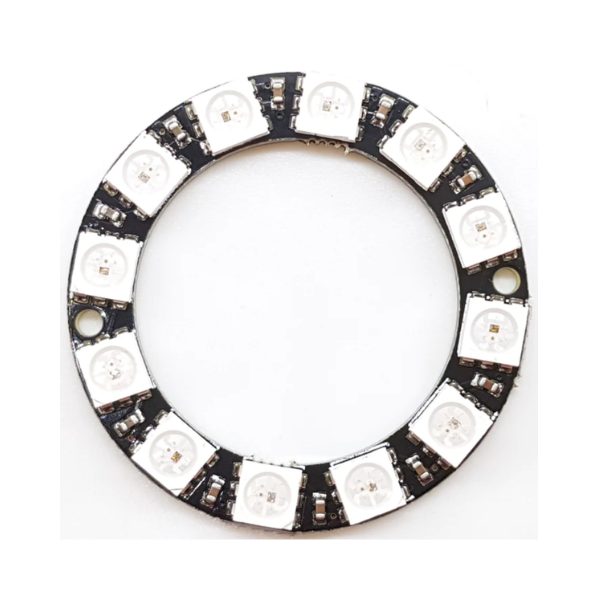

RGB LED Driver WS2812 12 Bit for Flight Controller
(0 Reviews)
In stock
Category: Robotics Project
SKU: 2041
MRP Price:
Discounted Price:
₹101
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
1) Voltage: 5V
2) Port: Digital
3) Platform: for Arduino and Raspberry Pi microcontroller
4) 5050 highlight LED, built-in control chip, only an IO port to control multiple LED
Description:
Intelligent reverse polarity protection, power Supply reverse polarity will not damage the IC.; IC control circuit and a power LED spotlight utility. ; Control circuit chip with RGB components in a package in 5050, to form a complete external control pixel. ; built-in signal shaping circuit, any one pixel after receiving the signal through the Waveform shaping and then Output to ensure line Waveform distortion will not accumulate. ;
Built-in power-on reset and brown-out reset circuit. ; a trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s. serial cascade interface, through a signal line, to complete the receiving and decoding of data. ; transfer transmission distance between any two points in less than 5 meters without any additional circuitry. ; When the refresh rate of 30 frames/sec, cascading the number of not less than 1024 points. ; data transmission speeds of up to 800Kbps. ; The color of the light highly consistent, cost-effective.
Features:
Chip built shaping circuit, signal distortion is not cumulative, stable display
Send and receive data at speeds up to 800Kbps
Highlight LED, light color high brightness consistency
Both ends even level interface, can be connected directly
Package Include:
1 x RGB LED Driver WS2812 12 Bit for Flight Controller
