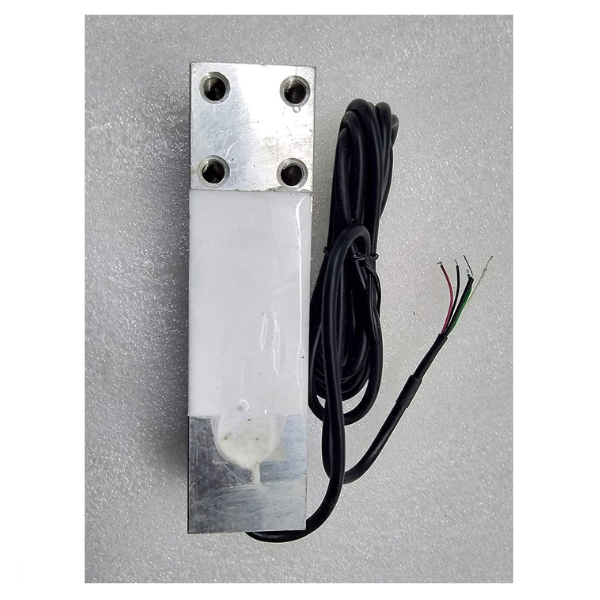

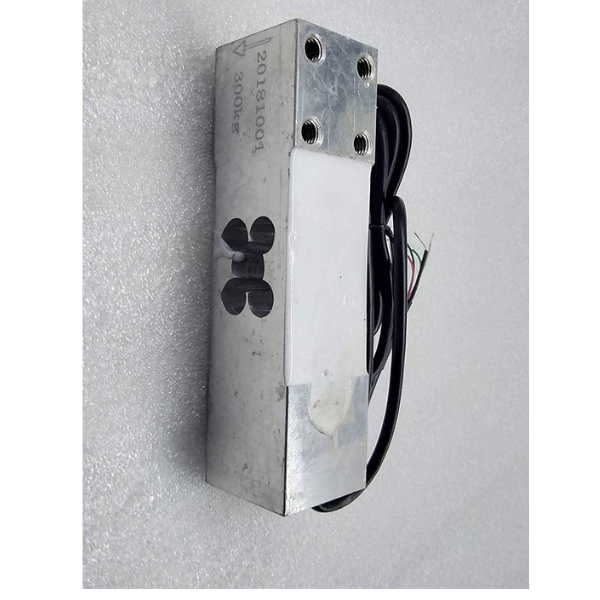

Load Cell 300KG Table Top Wide Bar

Sold By

DSM Online

(13 customer reviews)

Top Selling Products

Arduino Uno Protoshield + Mini Breadboard

47% OFF

~~₹200~~ ₹106
Arduino Mega Protoshield prototype expansion board+ Mini Breadboard

46% OFF

~~₹200~~ ₹108
Arduino MEGA 2560 R3 Protective Transparent Acrylic Case

49% OFF

~~₹199~~ ₹103
Aluminium Heat Sink 75mm x 45mm

47% OFF

~~₹299~~ ₹158
ENC28J60 Ethernet LAN Network Module

44% OFF

~~₹799~~ ₹447
Raspberry Pi 3 in 1 Heat Sink Aluminium for Raspberry Pi 4B (Gold) - Pack of 1

66% OFF

~~₹99~~ ₹34
Arduino Uno R3 SMD CH340G ATmega328p Development Board

27% OFF

~~₹599~~ ₹435
5 Pin 2.5mm Dupont Jumper Wire Pin Header Connector

42% OFF

~~₹99~~ ₹58

Description Reviews

1) Simple and easy interface to connect to Arduino/Raspberry Pi using HX711 Breakout Board.

2) Precision: 0.02.

3) Ingress protection: IP65 Not to be affected by water sprinkled from any direction in a short period of time.

4) Integral structure and easy to install or calibrate.

Description:

A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells. This is a standard load cell for measuring weight up to 300 Kg. The most common use of this sensor is in weighing machine. Every weighing machine which shows weight has a loadcell as sensing element. This conversion is indirect and happens in two stages. Through a mechanical arrangement, the force being sensed deforms a strain gauge.

Connections:

I/P - Red(+),Black(-)

O/P - Green(+),White(-)

Specifications:

Type - Single Point Load Cell

Protection - IP65

Applications Weighing Scales, Retail, Bench & Counting Scales

Rated Load 300 Kg. Max

Excitation Voltage 5-12V DC

Operating Temperature -20 °C to +65 °C

Zero Balance +/- 1% Full Scale
