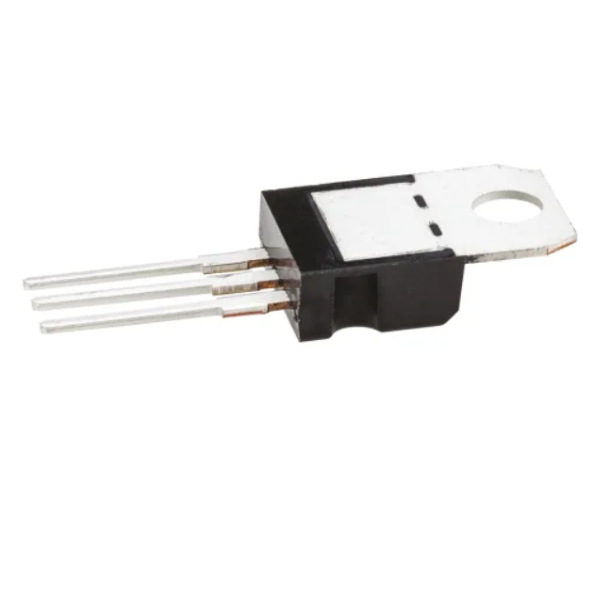

L7824CV 24V Positive Voltage Regulator (Package TO - 220) L7824CV 24V Positive Voltage Regulator (Package TO - 220) L7824CV 24V Positive Voltage Regulator (Package TO - 220) L7824CV 24V Positive Volta

1) Output Type Fixed
2) Input Voltage Min: 33V
3) Input Voltage Max: 40V
4) Fixed Output Voltage Nom: 24V
5) Output Current: 1.5A

Description:

This is a Linear Voltage Regulator, Fixed, 33V to 40V Input, 24V/1.5A OutVoltage regulators are very common in electronic circuits. They provide a constant output voltage for a varied input voltage. In our case, the 7824 IC is an iconic regulator IC that finds its application in most projects.

Features:

• 5V Positive Voltage Regulator

• The minimum Input Voltage is 27V

• Maximum Input Voltage is 25V

• The operating current(IQ) is 5mA

• Junction Temperature maximum 125 degrees Celsius

• Internal Thermal Overload and Short circuit current limiting protection is available.

Package Includes:

• 1 X L7824CV Voltage Regulator IC
