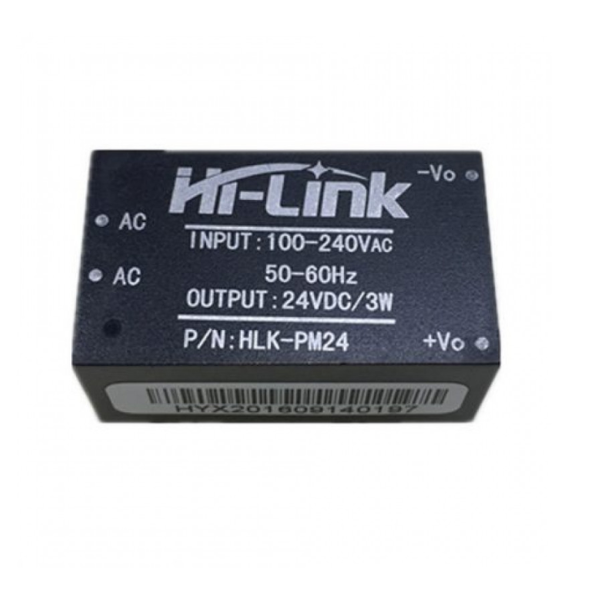

Hi Link HLK PM24 24V/3W Switch Power Supply Module
(0 Reviews)
In stock
Category: AC to DC Power Module
SKU: 1864
MRP Price:
Discounted Price:
₹253
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
1) Heat Dissipation Mode: Natural cooling
2) The atmospheric pressure: 80-106Kpa.
3) Output overload and short circuit protection
4) Low power consumption, environmental protection,no-load loss <0.1W
Description:
HLK-PM24 Hi-Link 24V 3W AC to DC Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 24V DC from 100V AC 240V AC and has a power rating of 3 Watt. This makes it perfect for small projects that need 24 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.
This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.
Features:
Ultra-thin, ultra-small
All voltage input (AC: 100 ~ 240V)
Low ripple and low noise
Output overload and short circuit protection
High efficiency, high power density
The product is designed to meet the requirements of the EMC and Safety Test
Low power consumption, environmental protection,no-load loss <0.1W
Technical indicators: Single bit
Working temperature: -25-60 deg Celsius
Storage temperature: -40-80 deg Celsius
Relative humidity: 5-95%
Heat Dissipation Mode: Natural cooling
The atmospheric pressure: 80-106Kpa.
Specifications:
AC Input Voltage Range(V) 100-240
Color Black
Output Power (W) 3
Output Voltage (V) 24
Input surge current More than 10 A
Output Current (mA) 125
Maximum input current More than 0.2 A
Relative humidity 5 to 95%
Load Regulation +/- 0.5
Working Temperature -25 to +60C
Operation Temperature -20 to +60 deg C
Package Include:
1 x Hi Link HLK PM24 24V/3W Switch Power Supply Module
