1) The smallest 802.11b/g/n Wi-Fi SOC module.
2) Up to 160MHz clock speed.
3) Built-in 10 bit high precision ADC.
4) Supports UART/GPIO/IIC/PWM/ADC.
5) Integrated Wi-Fi MAC/BB/RF/PA/LNA.
Description:
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
Specifications:
WIFI Direct (P2P),SOFT-AP
The AT command is perfect, efficient, concise
Support three modes: AP, STA and AP+STA coexistence mode the TCP/IP protocol suit
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)

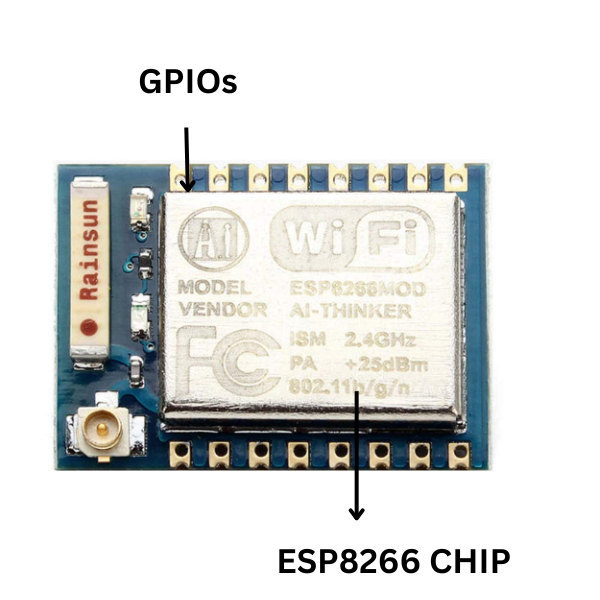

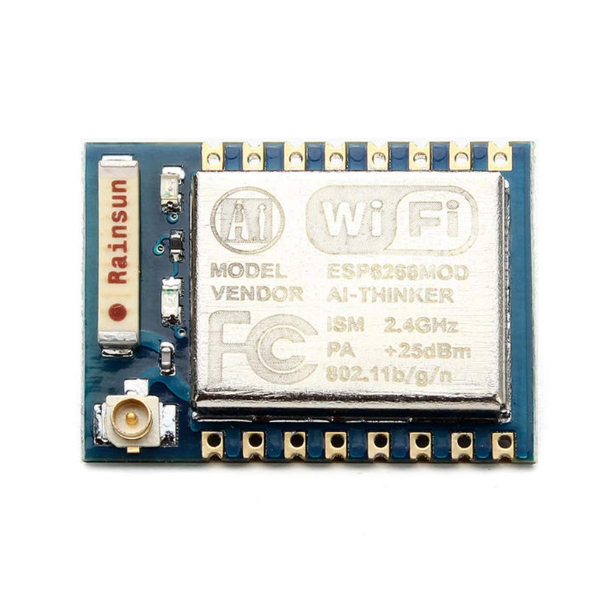

ESP-07: Semi hole SMT technology, all are leaded by IO, with metal shielding case, support external IPX antenna as well as internal ceramic antenna.
Features:
Serial UART Interface
It run LWIP
802.11 bgn
WIFI Direct (P2P),SOFT-AP
Built-in TCP/IP
The AT command is perfect, efficient, concise
Support three modes: AP, STA and AP+STA coexistence mode
Onboard Chip Antenna
Package Includes:
1 x ESP-07 WIFI Module - IPEX-ESP8266.
