DRV8833 2 Channel DC Motor Driver
(0 Reviews)
In stock
Category: DC Motor Drives
SKU: 1999
MRP Price:
Discounted Price:
₹71
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
1) Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
2) Operating voltage: 2.7 V to 10.8 V
3) Output current: 1.2 A continuous (2 A peak) per motor
4) Inputs are 3V- and 5V-compatible
Description:
DRV8833 is a dual H-bridge motor driver IC that can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. It can supply up to about 1.2 A per channel continuously and can tolerate peak currents up to 2 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages. The board ships populated with SMD components, including the DRV8833, and add a FET for reverse battery protection.
The DRV8833 has a higher peak current rating (2 A per channel vs 1.5 A), optional built-in current-limiting, and no need for externally supplied logic voltage.
Features:
Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
Operating voltage: 2.7 V to 10.8 V
Output current: 1.2 A continuous (2 A peak) per motor
Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor
Inputs are 3V- and 5V-compatible
Under-voltage lockout and protection against over-current and over-temperature
Reverse-voltage protection circuit
Current limiting can be enabled by adding sense resistors (not included)

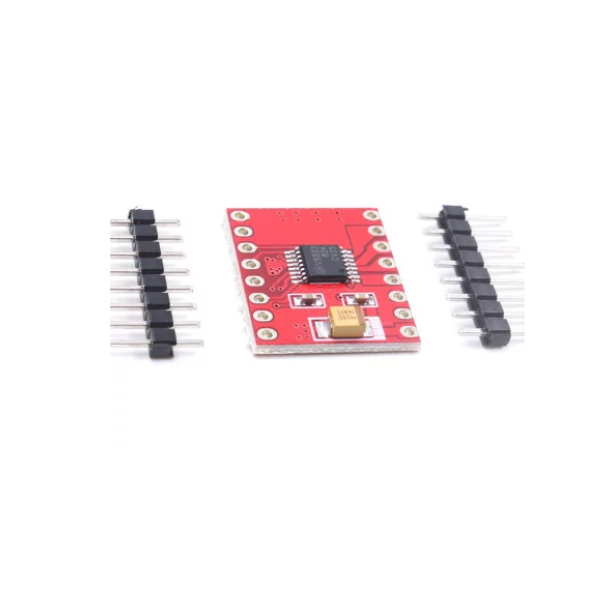

Package Includes:
1 x DRV8833 2 Channel DC Motor Driver Module
1 x Pin Headers
