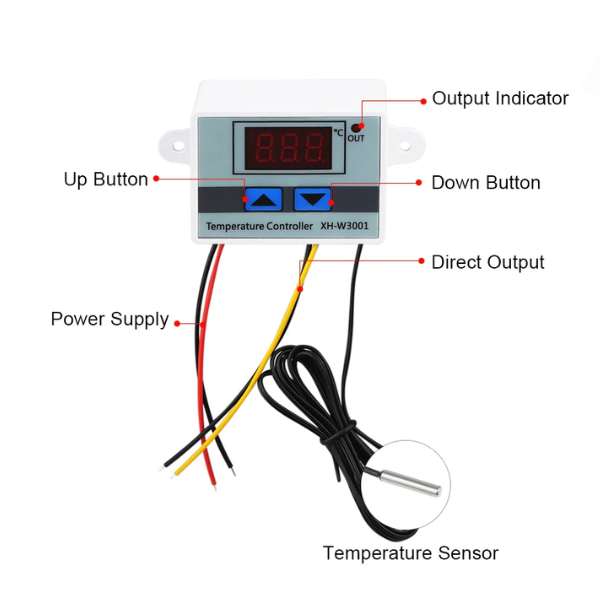

Digital LED Temperature Controller XH-W3001 220V 10A

The XH-W3001 is a digital LED temperature controller module designed for accurate and reliable temperature control in a variety of applications. It features a digital display for easy temperature monitoring and allows users to set both upper and lower temperature limits for precise control. With a 10A relay output, it can directly control heating or cooling devices connected to it.

Key Features:

• Digital LED Display: Clearly shows the current temperature.
• Wide Temperature Range: Measures and controls temperatures from -50°C to 110°C.
• High Accuracy: Temperature control accuracy up to 0.1°C.
• Relay Output: 10A relay output for direct control of heating or cooling devices.
• Easy to Use: Simple interface for setting temperature limits.
• Versatile: Suitable for various temperature control applications.

Applications:

• Home Appliances: Temperature control for refrigerators, freezers, water heaters, etc.
• Industrial Equipment: Temperature control in machinery, ovens, incubators, etc.
• DIY Projects: Temperature control for terrariums, aquariums, brewing, and other hobby projects.
• HVAC Systems: Can be integrated into heating and cooling systems.

Specifications:

• Model: XH-W3001
• Operating Voltage: 220V AC
• Temperature Measurement Range: -50°C to 110°C
• Temperature Control Range: -50°C to 110°C
• Control Accuracy: 0.1°C
• Resolution: 0.1°C
• Refresh Rate: 0.5 seconds
• Sensor: NTC thermistor (10K)
• Output: 10A relay
• Dimensions: 60mm x 45mm x 31mm

DATA SHEET AND USECASE

Key Specifications:

• Model: XH-W3001
• Power Supply: AC 220V
• Output Type: Direct output
• Output Capacity: Max 10A
• Load Power: Up to 1500W
• Temperature Measurement Range: -50°C to 110°C
• Temperature Control Range: -50°C to 110°C
• Temperature Control Precision: ±0.1°C
• Sensor: NTC10K waterproof probe, 1 meter in length
• Dimensions: 60mm x 45mm x 31mm
