DC TO DC STEP UP BOOST CONVERTER 4A XL6009
(0 Reviews)
In stock
Category: DC to DC Converter
SKU: 1457
MRP Price:
Discounted Price:
₹81
/PC
Share:
Sold By
DSM Online
(15 customer reviews)
Top Selling Products
-
Relay Module 5V 8 Channel
₹549₹365 -
Bluetooth HC-05 Wireless UART Module
₹599₹273 -
Arduino Uno R3 board
₹999₹766 -
Arduino Mega 2560 R3
₹2,299₹1,651 -
Teensy 3.2 Development Board
₹3,500₹2,800

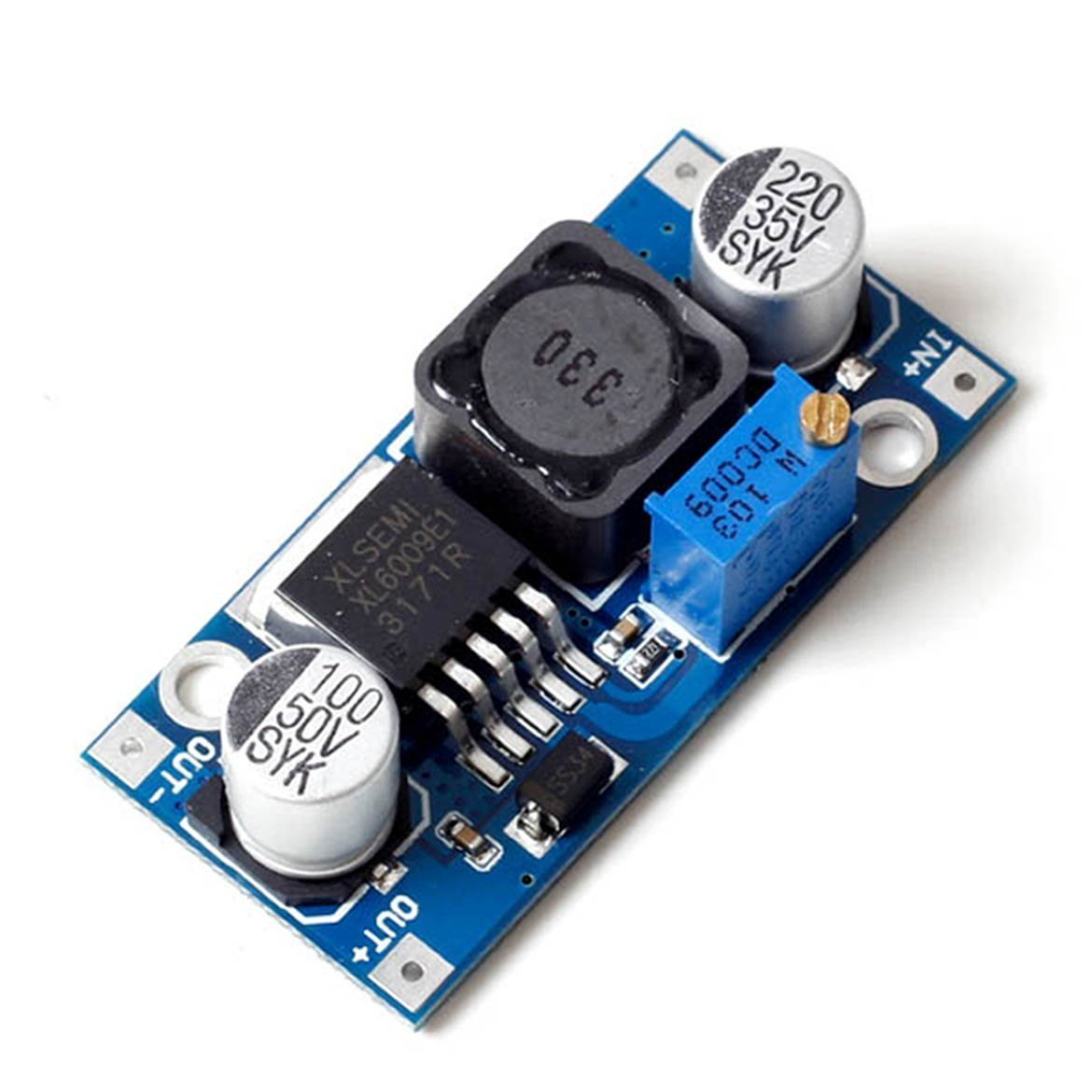

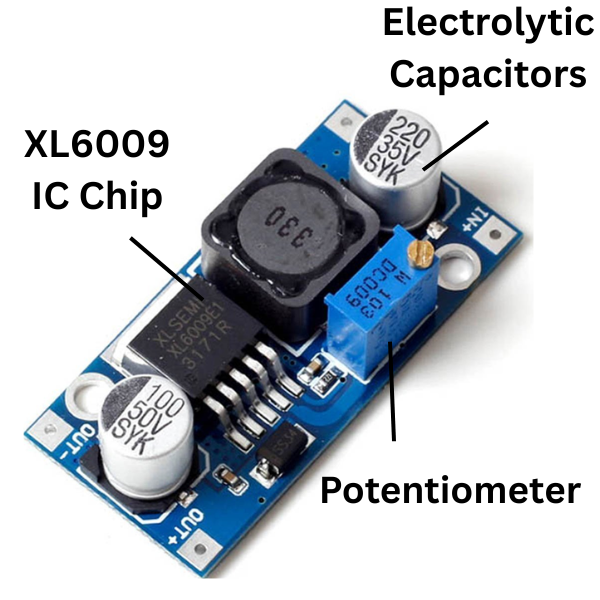

XL6009 3-32V to 5-35V DC-DC Adapter Booster Circuit Board Module:
Features:
Wide input voltage range of 3V – 32V (optimum operating voltage range is 5 – 32V)
Wide Output voltage range of 5V – 35V (Adjustable using on board preset)
Built in 4A MOSFET switches enables efficiency of up to 94% (LM2577 current is 3A)
High switching frequency of 400KHz, can use a small-capacity filter capacitors that can achieve very good results (LM2577 switching frequency is only 50KHz)
Specification:
Input Range : 3V ~ 32V
Output Range : 5V ~ 35V
Input Current : 4A (maximum), load 18mA ( 5Vinput, 8V output, no-load is less than 18mA . The higher the voltage, the load current increases.)
Conversion efficiency : < 94% (the greater the current, the lower the efficiency)
Switching frequency : 400KHz
Output ripple : 50mV (the higher the voltage, the greater the current, the greater ripple)
Load Regulation : ± 0.5%
Voltage Regulation : ± 0.5%
Working temperature : -40 ° C ~ +85 ° C
Dimensions : 43mm * 21mm * 14mm (length * width* height)
Output ripple : 50mV (the higher the voltage, the greater the current, the greater ripple)
