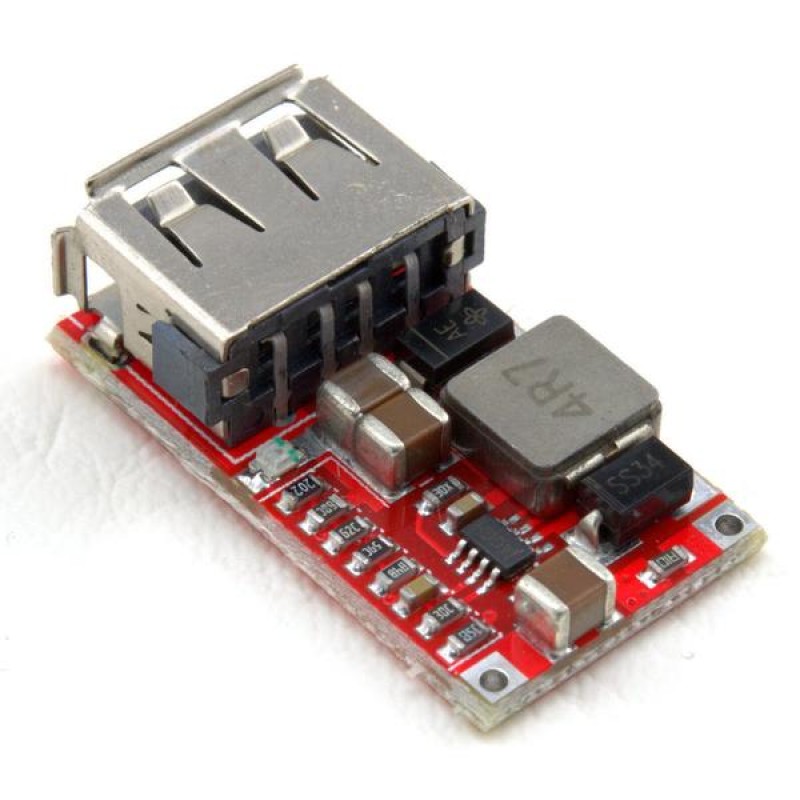

DC-DC BUCK CONVERTER 6V-24V TO 5V 3A USB OUTPUT MODULE
(0 Reviews)
In stock
Category: DC to DC Converter
SKU: 1387
MRP Price:
Discounted Price:
₹76
/pc
Share:
Sold By
DSM Online
(15 customer reviews)
Top Selling Products
-
Relay Module 5V 8 Channel
₹549₹365 -
Bluetooth HC-05 Wireless UART Module
₹599₹273 -
Arduino Uno R3 board
₹999₹766 -
Arduino Mega 2560 R3
₹2,299₹1,651 -
Teensy 3.2 Development Board
₹3,500₹2,800
DC-DC Buck Converter 6V-24V To 5V 3A USB Output Module:
Features:
The max output current 3A, long time use 2.1A, enough use
New design, 3 solid state ceramic capacitors(MCC), more safe and low ripple
Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94%
Flat copper inductor, improve conversion efficiency

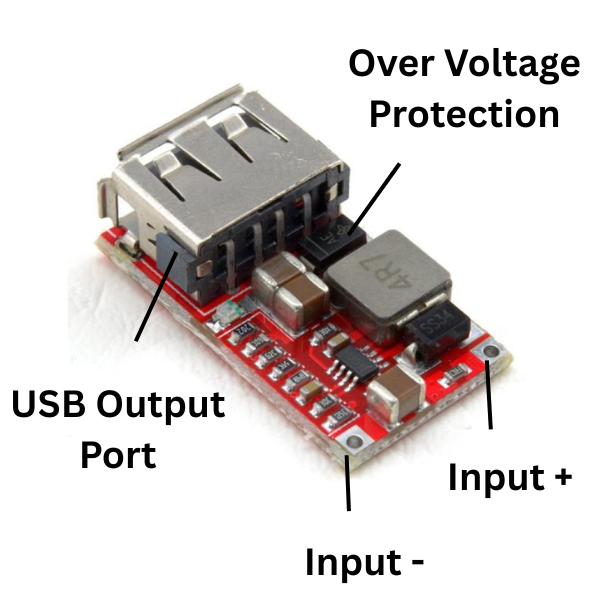

With output over voltage protection. There is a 1.5A fuse, output 5V have 300W TVS tube protect your USB device
Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc
High quality USB port
Output voltage indicator (RED)
Small size, 26.4 (L) * 15 (W) * 7.4 (H) mm
Specification:
Non-isolated buck module (BUCK) synchronous rectification
Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation.
Switch frequency: 500KHz
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
