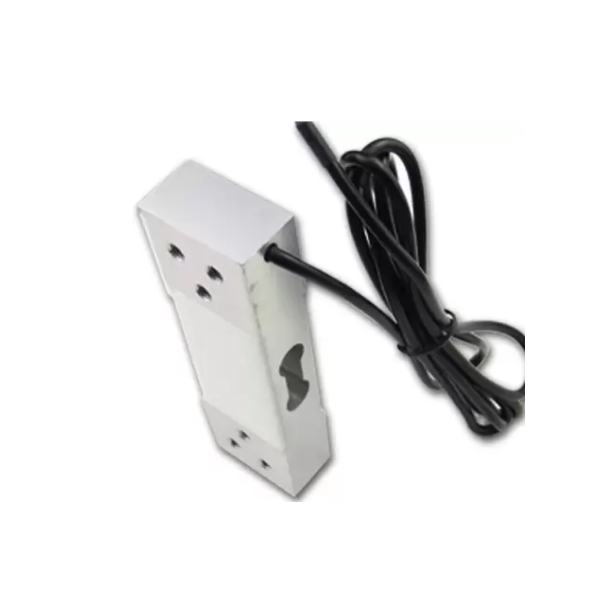

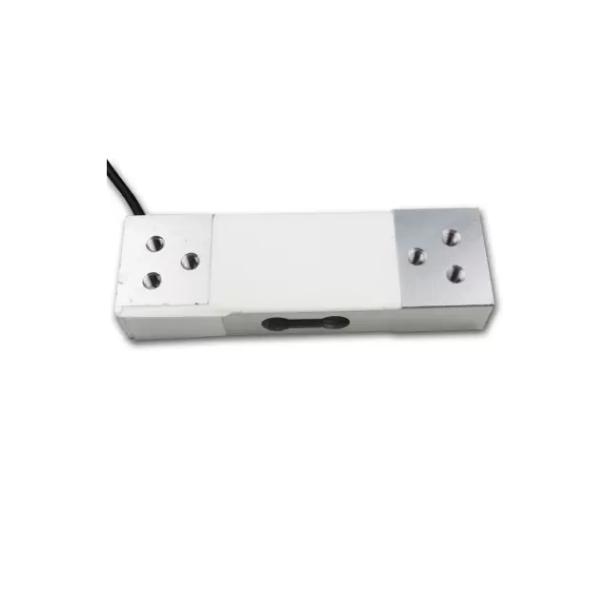

CZL601 AC 200 Kg Load Cell Weighing Sensor

1) Capacity 120kg,150kg,200Kg
2) Load Capacity 120kg,150kg,200Kg
3) Model Number CZL601 AC

Description:

A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells, and strain gauge load cells.

This is a standard load cell for measuring weight up to 200 Kg. The most common use of this sensor is in a weighing machine. Every weighing machine which shows weight has a load cell as a sensing element.

This conversion is indirect and happens in two stages. Through a mechanical arrangement, the force being sensed deforms a strain gauge. The strain gauge measures the deformation (strain) as an electrical signal because the strain changes the effective electrical resistance of the wire. A load cell usually consists of four strain gauges in a Wheatstone bridge configuration. Load cells of one strain gauge (quarter bridge) or two strain gauges (half bridge) are also available.

Features:

• Capacity: 200Kg

• Material- Aluminum Alloy
• Input Resistance-405 +/- 6 Ohm
• Output Resistance-350 +/- 3 Ohm
• Excitation Voltage-5-12V DC


Package Includes:

• 1 x 200kg CZL601-AC Load c
