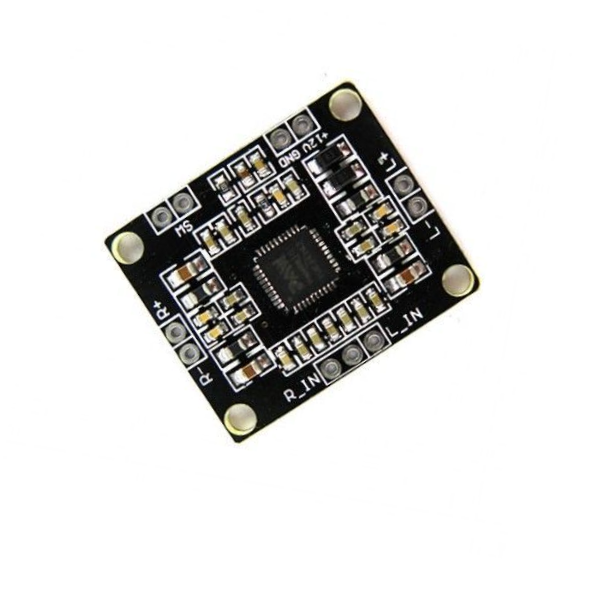

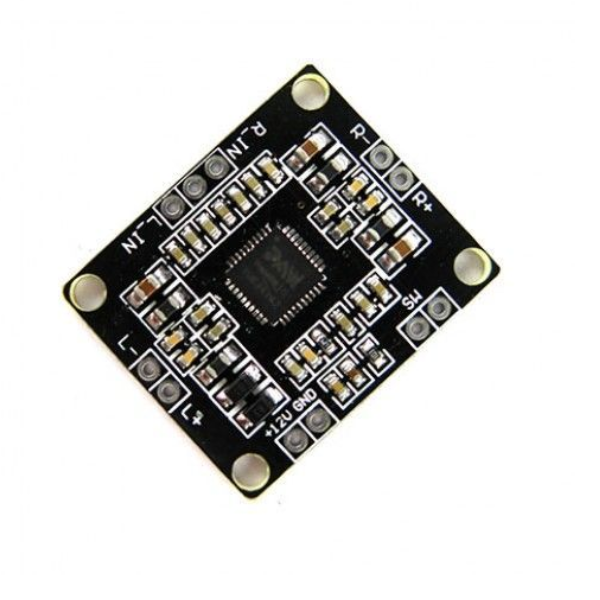

Class D Stereo Digital Amplifier 2-Channel PAM8610
(0 Reviews)
In stock
Category: Other Accessories
SKU: 1695
MRP Price:
Discounted Price:
₹129
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
PRODUCT DESCRIPTION:
The PAM8610 is a 10W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM8610 runs off of a 7V to 15V supply at much higher efficiency than competitors’ ICs. The PAM8610 only requires very few external components, significantly saving cost and board space. The PAM8610 is available in a 40pin QFN 6mm*6mm package.
FEATURES:
Product Name: Digital audio amplifier board
Model: XH ~ M120
Work: Class D (PWM modulation)
Chip selection: PAM8610
Scope of supply: DC6 ~ 15V
Keep pushing Voltage: DC12V
Output Power: 15W * 2
Channel Type: Dual Channel
SNR: 90dB
Frequency response: 20Hz-15KHZ
Quiescent current: 20MA(DC 12V)
Input Impedance: 20M
Recommend Speaker: 10-100W
Harmonic distortion: <0.1 percentage
How to use:
The power supply voltage limit is 16.5V, do not use more than this voltage.
The power supply is recommended for 12v, 3A power supply filter better
4-8 inch stereo speakers recommended.
Do not short-circuit the audio output to each other or shorted to ground
Carefully check before electricity, ensure the wiring is correct before electricity
