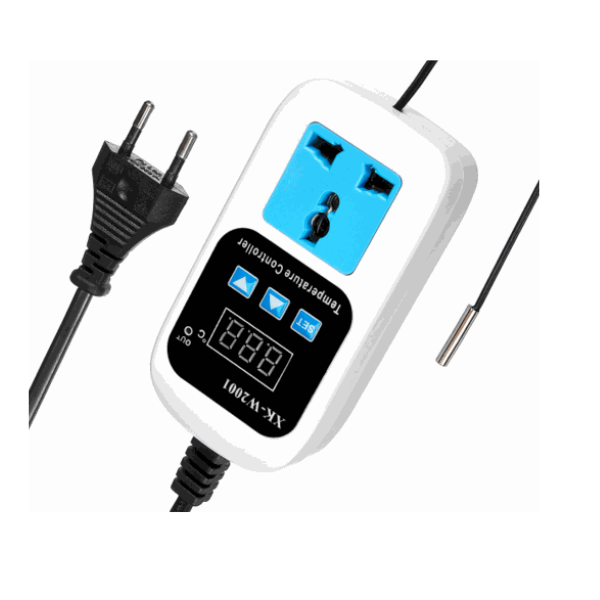

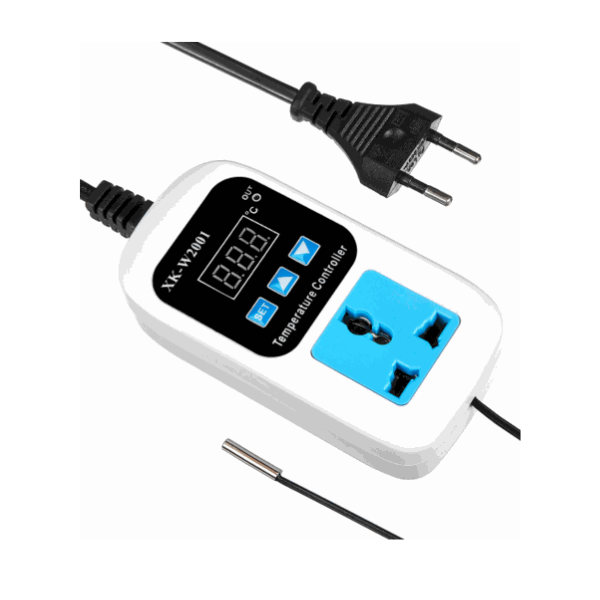

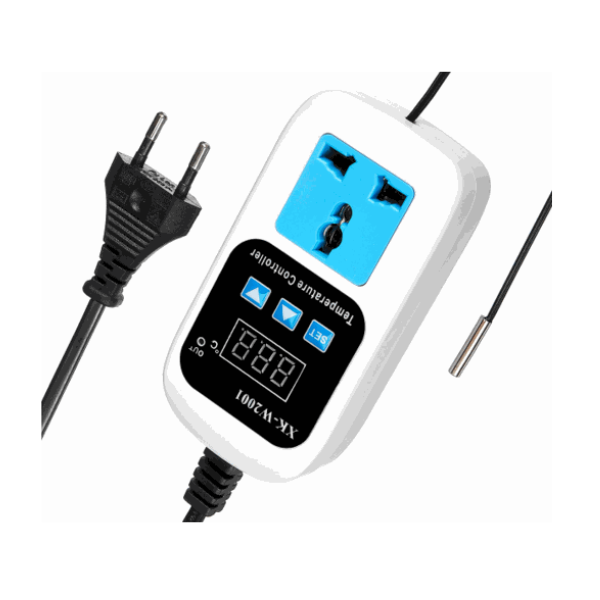

Adjustable Temperature Controller 220V AC XK-W2001

PRODUCT DESCRIPTION:​

This Module is Adjustable Temperature controller. Using this we can measure the temp. Here we can set the temp as per our requirement With clear digital display for better readability and Wide temperature measuring range. SO it can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial. In that there is 4 mode P0, P1, P2 and P3 to controlling the temp setting.

Operating Instruction:

 P0 setting starts temperature:

• Press the SET button to enter the internal menu. The default display is P0. Press the SET button again to set the desired starting temperature with the up and down buttons.

P1 setting stop temperature:

• Press the setting button to enter the internal menu, the digital display is P0, switch to P1 by the up and down buttons, press the setting button again, and set the required stop temperature by the up and down buttons.

P2 Setting calibration temperature:

• In the same way, enter the internal menu, switch to P2 by the up and down buttons, and then press the faint setting button. Set the required calibration temperature by the up and down buttons.

P3 Setting starting delay time:

• In the same way, enter the internal menu, switch to P3 by pressing the up and down buttons, press the setting button again, and set the required delay time (in minutes) by the up and down buttons.

​SPECIFICATION:​

• Temperature measure range:-50℃~110℃
• Temperature control range:-50℃~110℃
• Control accuracy:0.1℃
• Measure input:NTC10K L=1 waterproof probe
• Output:DC
• Output colume:Max. 10A
• Input voltage:110-220V
• Digital display
• Power:1500W

PACKAGE INCLUDE:

• 1 X  Adjustable Temperature Controller XK-W2001
