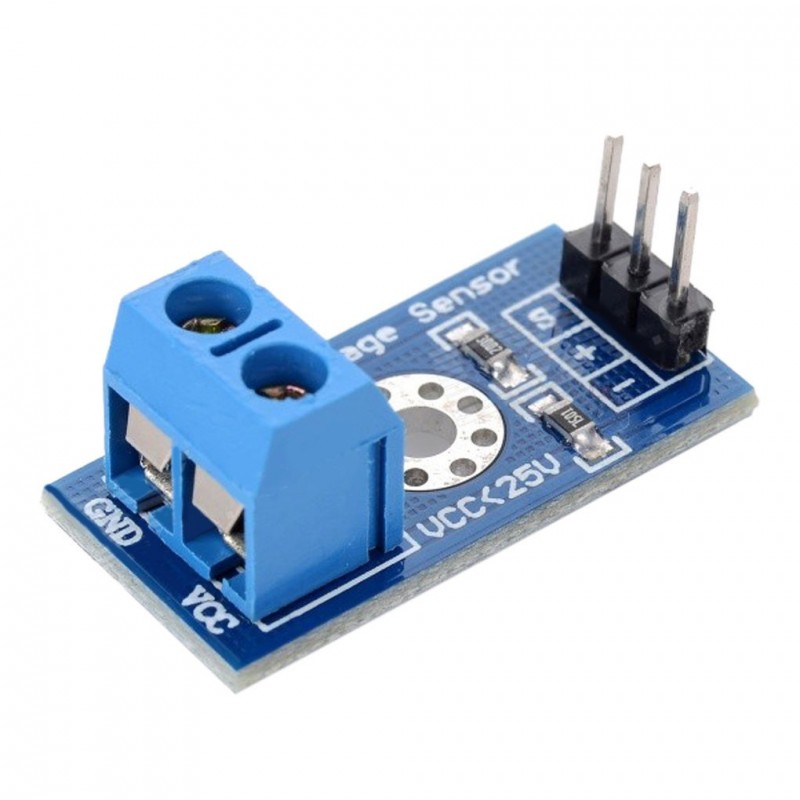

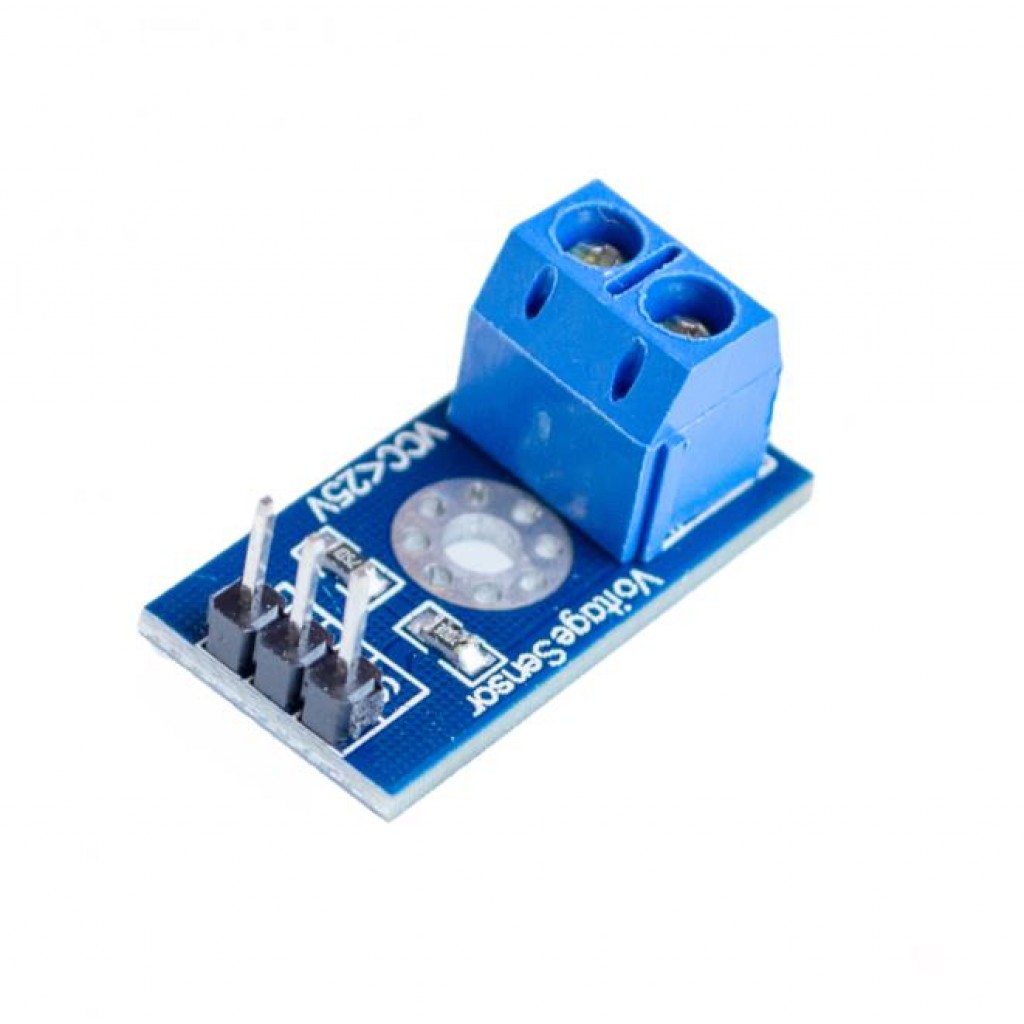

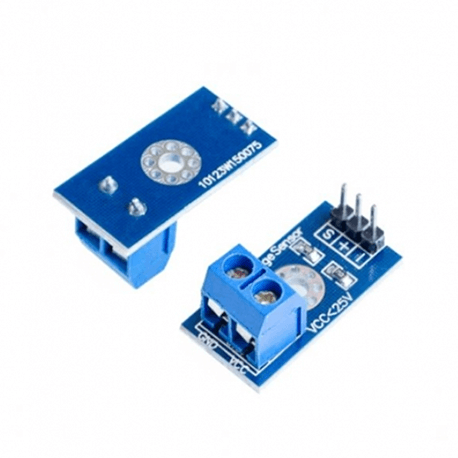

VOLTAGE DETECTION SENSOR MODULE UP TO 25V
(0 Reviews)
In stock
Category: Communication
SKU: 1446
MRP Price:
Discounted Price:
₹34
/PC
Share:
Sold By
DSM Online
(15 customer reviews)
Top Selling Products
-
Relay Module 5V 8 Channel
₹549₹365 -
Bluetooth HC-05 Wireless UART Module
₹599₹273 -
Arduino Uno R3 board
₹999₹766 -
Arduino Mega 2560 R3
₹2,299₹1,651 -
Teensy 3.2 Development Board
₹3,500₹2,800
It is fundamentally a 5:1 voltage divider using a 30K and a 7.5K Ohm resistor.
Keep in mind, you are restricted to voltages that are less than 25 volts.  More than that and you will exceed the voltage limit of your Arduino input.
Â
INPUTS :-
- GND – This is where you connect the low side of the voltage you are measuring.  Caution! : This is the same electrical point as your Arduino ground.
- VCC:  The is where you connect the high side of the voltage you are measuring
 OUTPUTS :-
S:Â Â This connects to your Arduino analog input.
– (or minus): This connects to your Arduino ground.
+: This is not connected. It does absolutely nothing.
