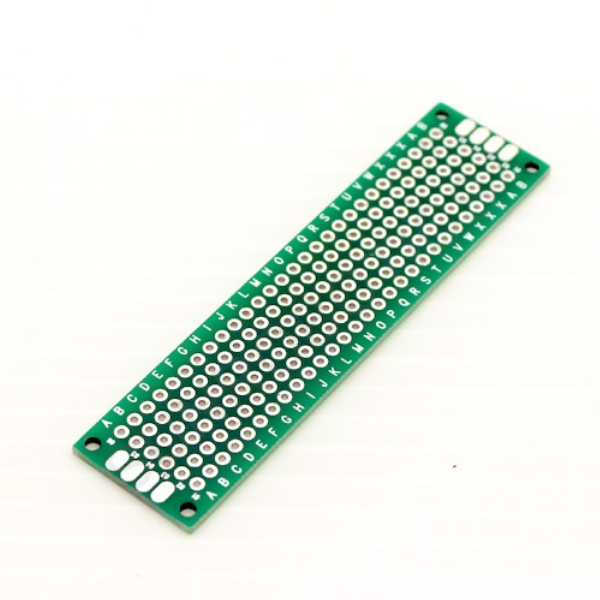

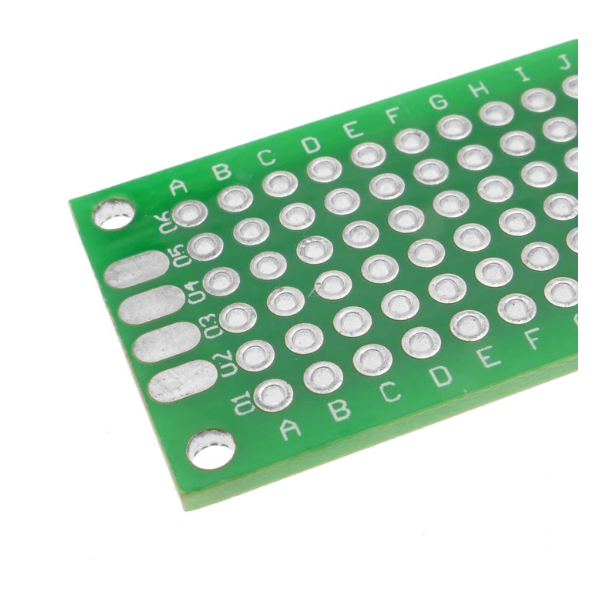

2 x 8 cm Universal PCB Prototype Board Double-Sided

2x8cm Double-Sided Universal PCB: Your Compact Prototyping Solution

Need a versatile and affordable PCB for your smaller-scale electronic projects? Our 2x8cm double-sided board is the perfect choice. Despite its compact size, this board offers exceptional versatility and durability for prototyping and testing.

Key Features:

• Ideal Dimensions: Perfect for limited workspace and smaller-scale projects.
• Double-Sided Convenience: Design on both sides for maximum flexibility.
• High-Quality Construction: Durable FR4 material and precise drilling for reliability.
• Affordable Price: A budget-friendly option for prototyping and experimentation.

Technical Specifications:

• Dimensions: 2x8cm
• Base Material: FR4
• Copper Thickness: 1-4 oz
• Board Thickness: 1.6mm
• Minimum Hole Size: 0.3mm
• Surface Finishing: HASL

Ideal Applications:

• Hobbyist Projects: Create unique electronic gadgets and devices.
• Educational Purposes: Learn and experiment with circuit design.
• Rapid Prototyping: Quickly test and iterate on your ideas.

Order your 2x8cm double-sided PCB board today and unleash your creativity!

DATA SHEET AND USECASE

Key Features:

• Dimensions: 2 cm x 8 cm (0.78" x 3.15")
• Material: High-quality FR-4 fiberglass
• Thickness: Approximately 1.6 mm (0.063")
• Hole Pitch: Standard 2.54 mm (0.1") spacing, compatible with most electronic components and DIP ICs
• Hole Diameter: Approximately 1 mm (0.039")
• Copper Layers: Double-sided with copper traces on both sides
• Surface Finish: HASL (Hot Air Solder Leveling) for enhanced solderability
• Plated Through-Holes: Ensures reliable electrical connections between both sides of the board
