1) 5V and 12V Output LED indicators
2) Regulated 5V and 12V outputs
3) Total 6 pairs ESC solder tabs are fit for H or X type frame
4) Built-in XT60 Socket
5) Hard mounted XT60 connector for secure battery connection
Description:

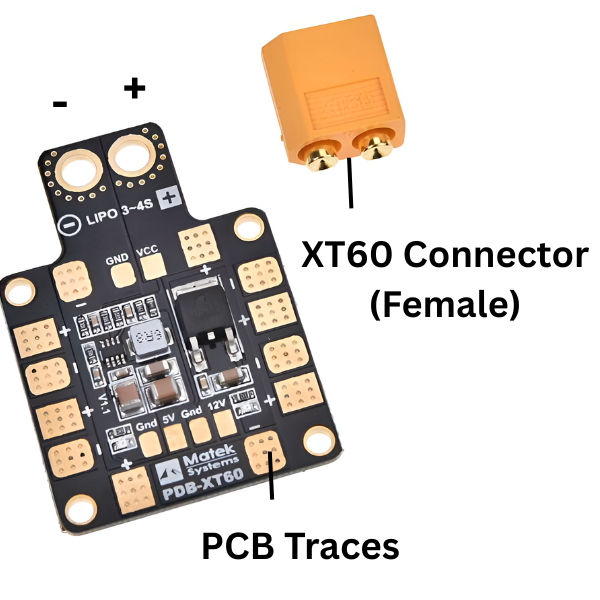

High quality 2 oz. copper power distribution board for high current 3-4S Mini Quad applications. Side-by-Side ESC pads and flexible wiring options reduces wiring clutter, saving weight and making soldering easier mounting holes make it perfect for stacking under common sized flight controllers.

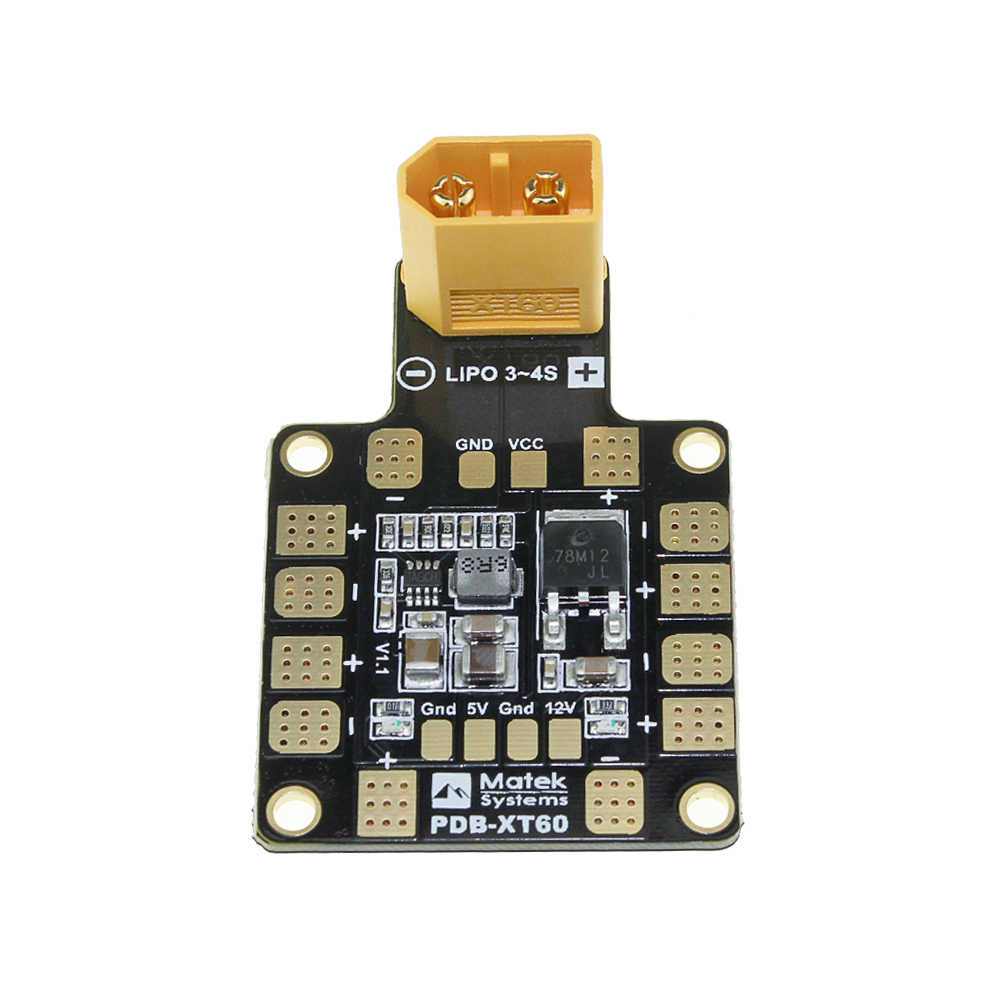

PDB-XT60 with BEC 5V and 12V Power Distribution Board have been engineered to provide the highest possible performance and reliability in a 36x50mm, 4 layer PCB. It comes with an XT60 for easy connection to LiPo batteries.
Features:
Onboard regulators deliver both 12V and 5V outputs.
Auxiliary pads for direct battery access.
Short-circuit tolerant: 5 seconds/minute
Output Ripple: 40mV (VIn= 16V, VOut= 5V@2A load)
BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
5V and 12V Output LED indicators
Regulated 5V and 12V outputs
Total 6 pairs ESC solder tabs are fit for H or X type frame
Built-in XT60 Socket
Hard mounted XT60 connector for secure battery connection.
4-layers and 1.6mm PCB
