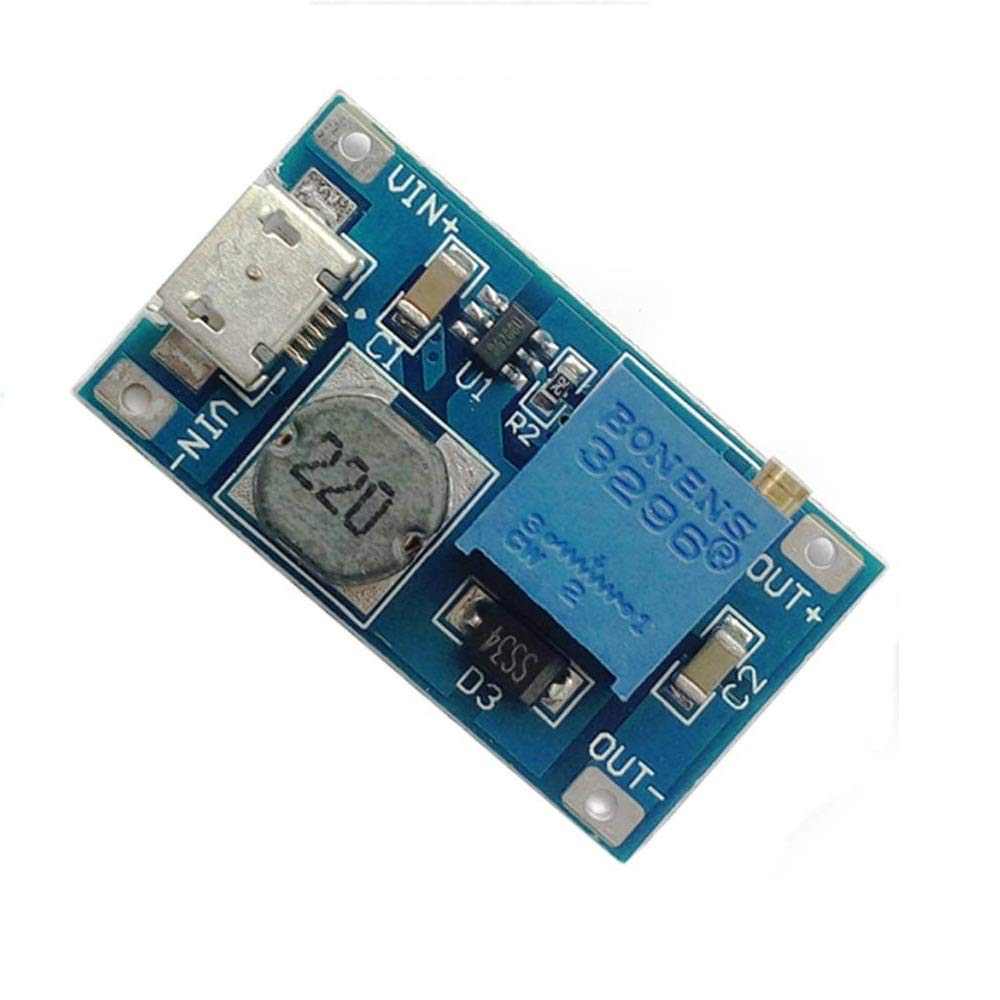

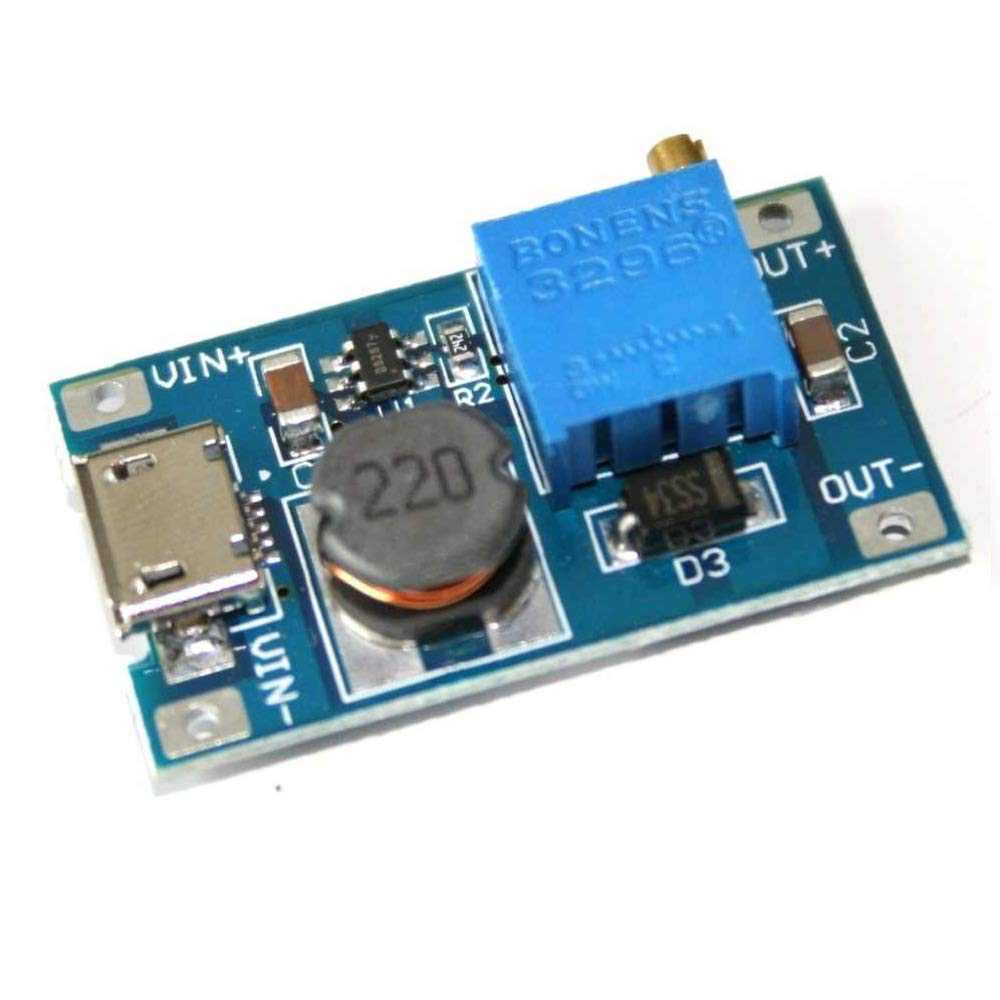

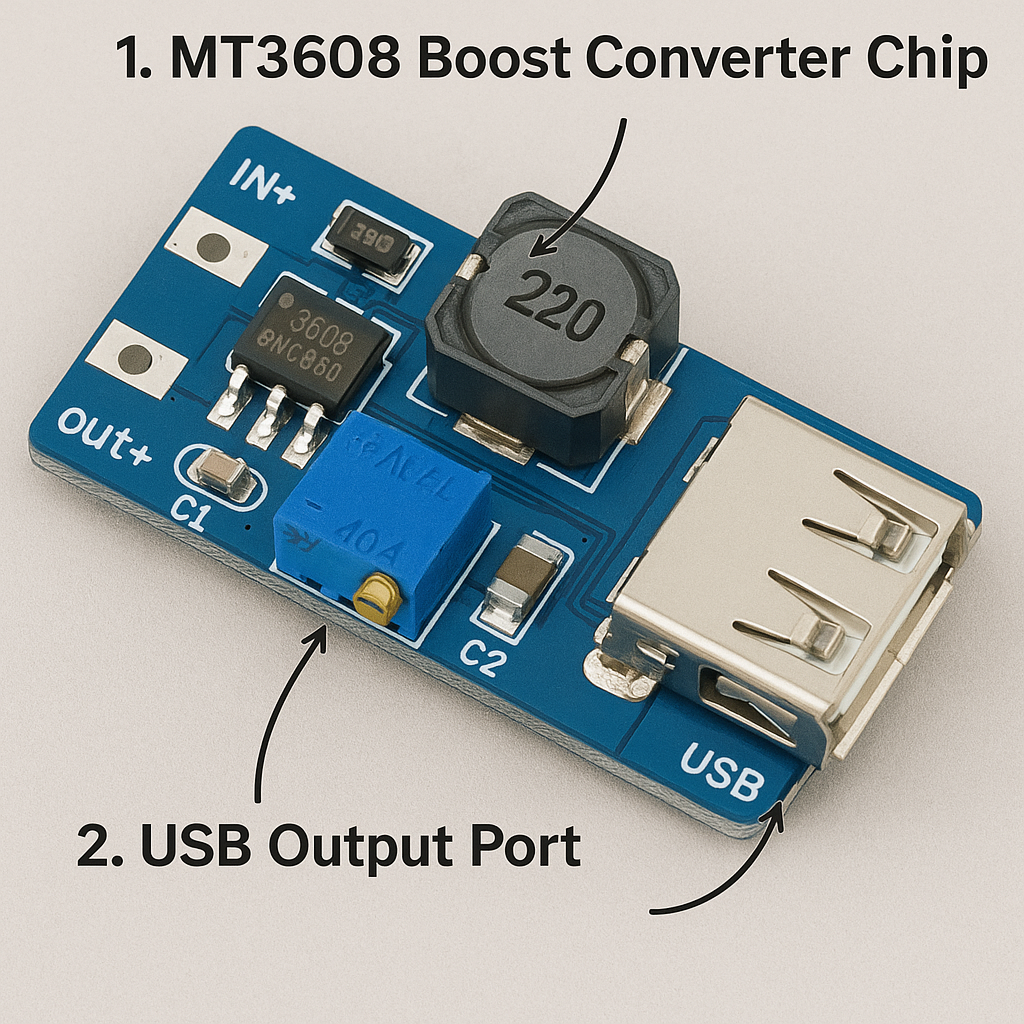

MT3608 step up voltage module with USB
(0 Reviews)
In stock
Category: Interface Module
SKU: 1334
MRP Price:
Discounted Price:
₹199
/PC
Share:
Sold By
DSM Online
(15 customer reviews)
Top Selling Products
-
Relay Module 5V 8 Channel
₹549₹365 -
Bluetooth HC-05 Wireless UART Module
₹599₹273 -
Arduino Uno R3 board
₹999₹766 -
Arduino Mega 2560 R3
₹2,299₹1,651 -
Teensy 3.2 Development Board
₹3,500₹2,800
Dropping voltage is a relatively easy process, but creating a higher voltage out of a lower voltage almost seems like alchemy. The MT3608 2A Max DC-DC Step Up Power Module uses a clever boostcircuit with an inductor to turn a low input voltage into a usa
Voltage Adjustment:-
The module has a single-turn potentiometer for adjustment of the output voltage.
Turning the pot CW decreases the output voltage while turning it CCW increases the output voltage.
The upper limit of the adjustment range will depend on the input voltage and the load. With a 9V input for instance, at 1A, the upper voltage limit will be approximately 20V.
Module Connections:-
These are compact boards with 4 solder pads for making connections.
VIN+ = Input Voltage
VIN- = Ground
VOUT+ = Output Voltage
VOUT- = Ground. Connected to VIN- on the module.
Note:-
The input voltage should not exceed the maximum input voltage.
Peak current output current is not more than 2A for input & output.
Please be noted that the output voltage should be higher than the input voltage.
Features :-
Its efficient by up to93%.
It can source a good amount of current.
It is an inexpensive converter module.
Its simple to adjust to get your desired increase in voltage.
Specifications :-
Input Voltage (V)
2 ~ 24
Output Voltage(V)
5 ~ 28
Output Current(A)
2
Operating Temperature (C)
-40 to +90
Efficiency
93%
Length (mm)
37
Width (mm)
17
Height (mm)
7
Weight (gm)
4
Package Includes :
\1 Piece MT3608 2A Max DC-DC Step Up Power Module Booster.
