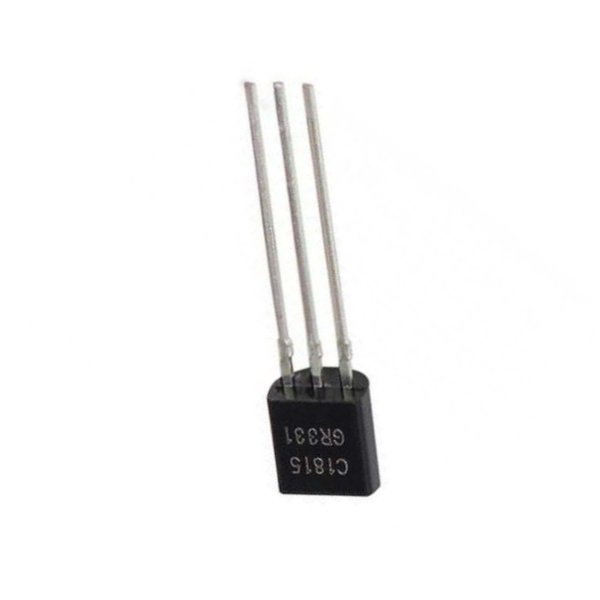

C1815 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
Transistor Polarity NPN
Collector−Emitter Voltage (VCEO) 50V
Collector−Base Voltage (VCBO) 60V
Continuous Collector Current (Ic) 150mA
Emitter Base Voltage (VEBO) 5V
Operating Temperature Range -55 - 150°C
DC Current Gain (hFE) 130-400
Transition Frequency (fT) 80MHz
