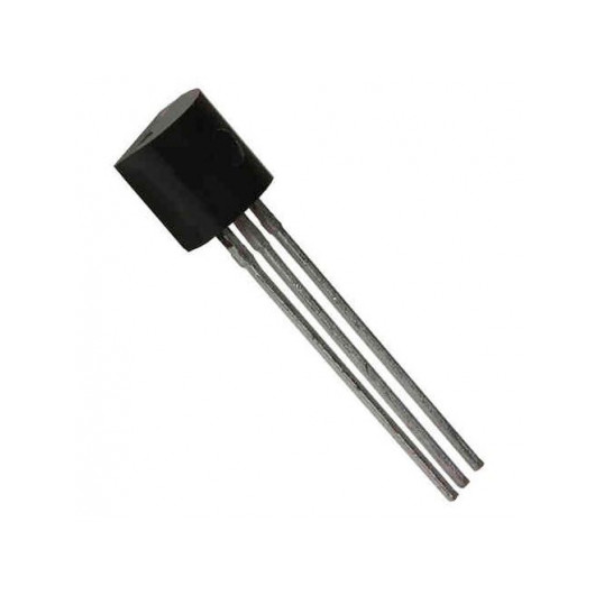

BC327 PNP General Purpose Amplifier Transistor 45V Pack 5

Sold By

DSMElectro Solutions Private Limited

(1249 customer reviews)

Top Selling Products

Resistor SMD 1206 10K Pack 10

74% OFF

~~₹39~~ ₹11
Digital LED Temperature Controller XH-W3001 12V 120W

41% OFF

~~₹399~~ ₹236
LCD 16x2 Blue Display

40% OFF

~~₹199~~ ₹120
IR tracker sensor

54% OFF

~~₹99~~ ₹46
LiPo Rechargeable Battery High-Quality 3.7V 500mAh

57% OFF

~~₹599~~ ₹258
Relay Module 12V Single Channel

54% OFF

~~₹99~~ ₹46
NEMA17 Planetary Geared Hybrid Stepper Motor 25KGCM Reduction Ratio 1:5

25% OFF

~~₹4,999~~ ₹3,775
LiPo Rechargeable Battery High-Quality 3.7V 380 mAh

25% OFF

~~₹399~~ ₹300

Description Reviews

The BC327 is a general-purpose PNP bipolar junction transistor (BJT) designed for low-power amplification and switching applications. It's a popular choice due to its reliability, versatility, and ease of use.

Key Features:

High Reliability: Ensures consistent performance and durability.
Audio Frequency Amplification: Specifically designed for use in audio circuits.
PNP Bipolar Transistor: Suitable for both switching and amplification applications.
TO-92 Package: A common package type for discrete transistors, providing a standard pinout and mounting configuration.
Low Power Consumption: Ideal for battery-powered devices and other applications where power efficiency is crucial.

Applications:

Preamplifiers
Tone controls
Volume controls
Audio amplifiers
Switching circuits
General-purpose electronics

Specifications:

Base Current : 5mA
Collector Current : 100mA
DC Current Gain : 200-300
Collector-Emitter Voltage : 45V
Power Dissipation: 0.65W (at 25°C)

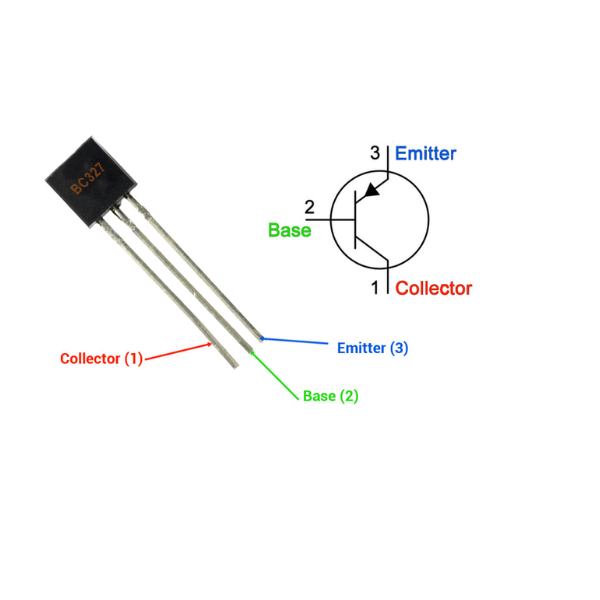

DATA SHEET AND USECASE

Key Specifications:

Package Type: TO-92
Collector Current (IC): -800 mA
Power Dissipation (PD): 625 mW
Emitter-Base Voltage (VEBO): -5 V
Collector-Base Voltage (VCBO): -50 V
Collector-Emitter Voltage (VCEO): -45 V
DC Current Gain (hFE): Varies between 100 to 630, depending on the specific variant (e.g., BC327-16, BC327-25, BC327-40)
