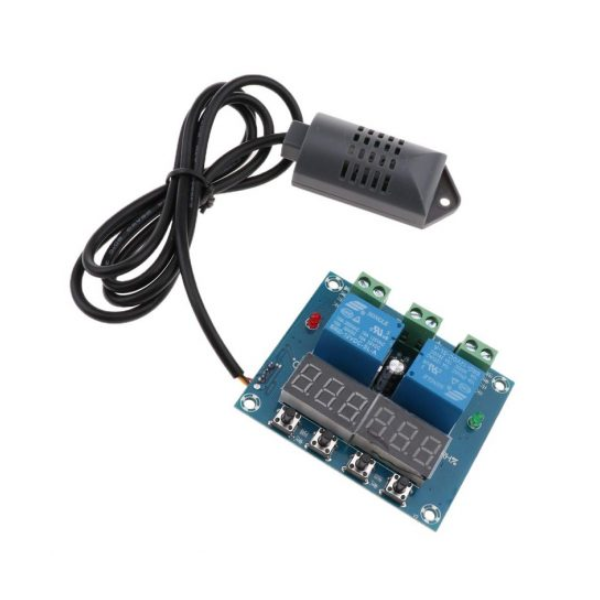

XH-M452 Temperature and Humidity Controller Module

Description:

The XH-M452 Temperature and Humidity Controller Module is a versatile electronic device designed to accurately measure and control temperature and humidity levels. It's commonly used in various applications where precise environmental control is required, such as greenhouses, incubators, and HVAC systems.

Key Features:

• Temperature and Humidity Measurement: Accurately measures both temperature and humidity using built-in sensors.
• Temperature and Humidity Control: Allows for setting desired temperature and humidity levels and automatically adjusting heating, cooling, or humidification systems to maintain those values.
• Relay Output: Provides relay outputs to control external devices like heaters, coolers, or humidifiers.
• LCD Display: Displays real-time temperature and humidity readings, as well as set points and status information.
• Adjustable Set Points: Allows you to customize the desired temperature and humidity levels.
• Calibration: Can be calibrated to ensure accurate measurements.
• Power Supply: Typically operates on a DC power supply (voltage may vary).

Applications:

• Greenhouses: Maintaining optimal temperature and humidity conditions for plant growth.
• Incubators: Controlling temperature and humidity for incubating eggs or other biological samples.
• HVAC Systems: Regulating indoor temperature and humidity in buildings.
• Data Centers: Maintaining a controlled environment for sensitive electronic equipment.
• Laboratory Equipment: Used in laboratory settings for various experiments and processes.
• Industrial Processes: Controlling environmental conditions in industrial manufacturing processes.

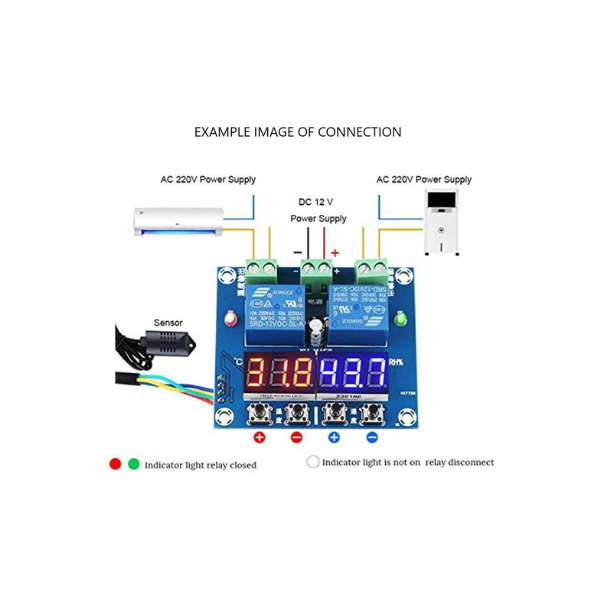

DATA SHEET AND USECASE

Key Features:

• Measurement Ranges:

  • Temperature: -20°C to 60°C
  • Humidity: 0% to 100% RH

• Control Accuracy: ±0.1°C for temperature and ±0.1% RH for humidity

• Display: Dual 3-digit LED displays for real-time temperature and humidity readings

• Sensor Probe: Includes an integrated sensor with a cable length of approximately 1 meter

• Power Supply: Operates on a 12V DC input

• Relay Outputs: Two independent relays rated at 10A, supporting devices up to
