Description:

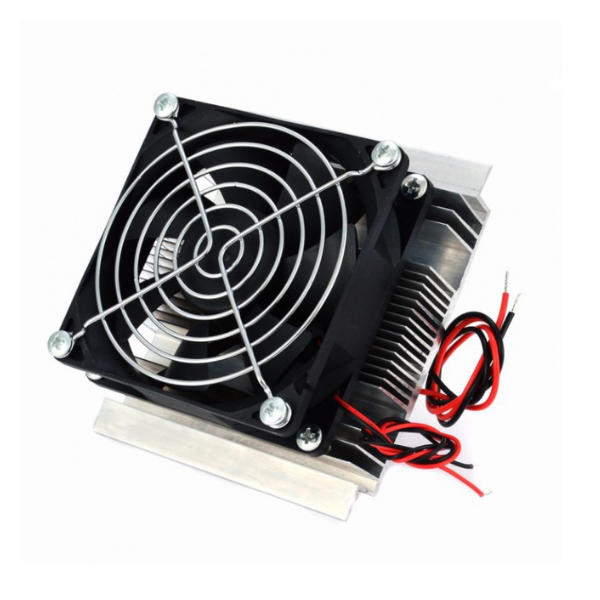

Create your own custom cooling solution with this DIY kit featuring a powerful TEC1-12706 thermoelectric Peltier module. Ideal for various applications, this kit offers a compact and efficient cooling system.
Key Features:
- Versatile Applications: Use for pet air conditioning, small refrigerators, or other cooling projects.
- Powerful Cooling: The TEC1-12706 module provides efficient cooling performance.
- Customizable Design: Assemble the kit to your specifications for optimal cooling.
- Compact Size: Takes up minimal space for easy installation.

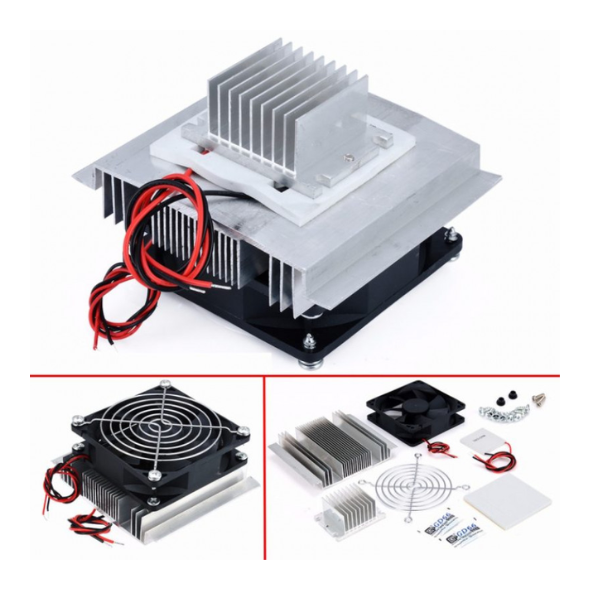

- Includes Essential Components: Contains a cooling fan, fan gauze, guide cold plate, radiator, thermal insulation gasket, silicon grease, and screws.
Specifications:
- Voltage: 12V
- Current: 6A
- Material: Metal and plastic

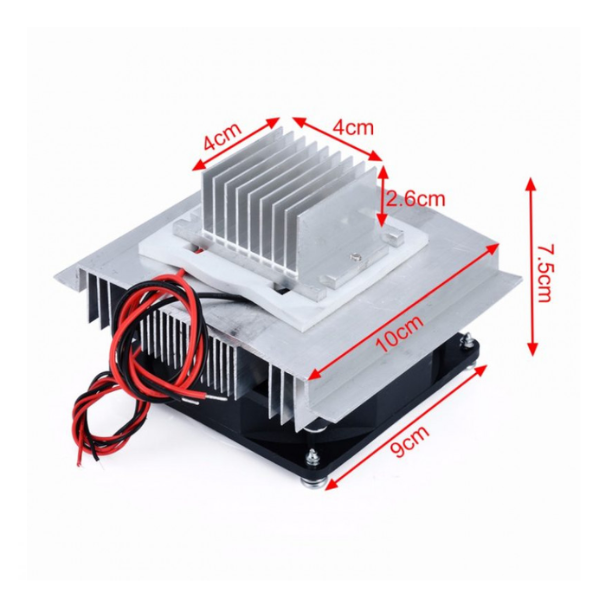

- Dimensions: 220 x 140 x 40mm
- Weight: 390g
Note:
- This kit requires assembly.
- The TEC1-12706 Thermoelectric Peltier Module is not included.
- Please allow for a 5% tolerance in dimensions due to manual production
DATA SHEET AND USECASE
Typical Components of the DIY Kit:
- Peltier Module (e.g., TEC1-12706): This is the core component responsible for the thermoelectric cooling effect. The TEC1-12706 module, commonly used in such kits, operates at 12V with a maximum current of 6A. It can achieve a temperature differential of up to 60°C between its hot and cold sides.

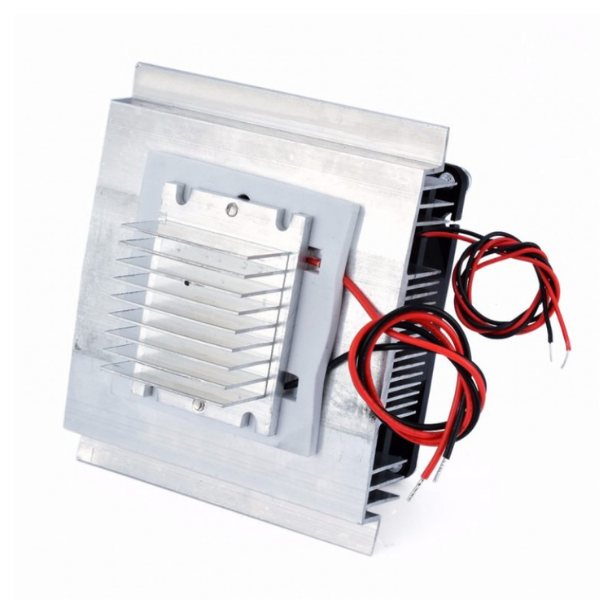

- Heat Sinks: Two heat sinks are typically included—one larger for the hot side and one smaller for the cold side. The larger heat sink dissipates heat effectively, while the smaller one maintains the cooled area.
- Cooling Fan: Attached to the larger heat sink, the fan enhances heat dissipation by increasing airflow over the heat sink's surface.
