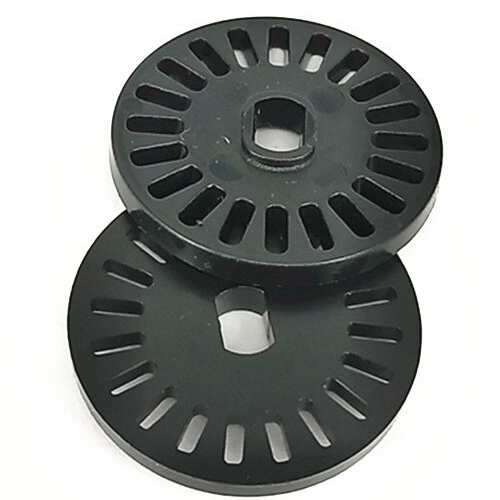

SPEED ENCODER 20 GRID TT MOTOR WHEEL COUNTING DISK

Description:

The SPEED ENCODER 20 GRID TT MOTOR WHEEL COUNTING DISK Pack 10 is a collection of 10 high-quality speed encoders designed for precise wheel counting and speed measurement in various applications. These encoders feature a 20-grid pattern and are specifically designed for use with TT motors.

Key Features:

• 20-Grid Pattern: Provides accurate and reliable speed measurement with a high resolution.
• TT Motor Compatibility: Optimized for use with TT motors, ensuring seamless integration and optimal performance.
• Durable Construction: Made from durable materials to withstand harsh environments and provide long-lasting reliability.
• Easy Installation: Simple and straightforward installation process, making it convenient to integrate into your projects.
• Wide Applications: Suitable for a variety of applications, including robotics, automation, and motor control systems.

Application:

1. Robot Wheel Speed Measurement
   Used to accurately measure the rotational speed of wheels in mobile robots for better motion control.

2. Distance Tracking and Odometry
   Helps in calculating the distance traveled by a robot or vehicle by counting wheel rotations.

3. Motor Speed Feedback
   Provides feedback to motor controllers for speed regulation and precise control.

4. Position Sensing
   Assists in determining the angular position of the motor shaft in automation systems.

DATA SHEET AND USECASE

Key Specifications:

• Diameter: Approximately 26 mm
• Thickness: Around 3.6 mm

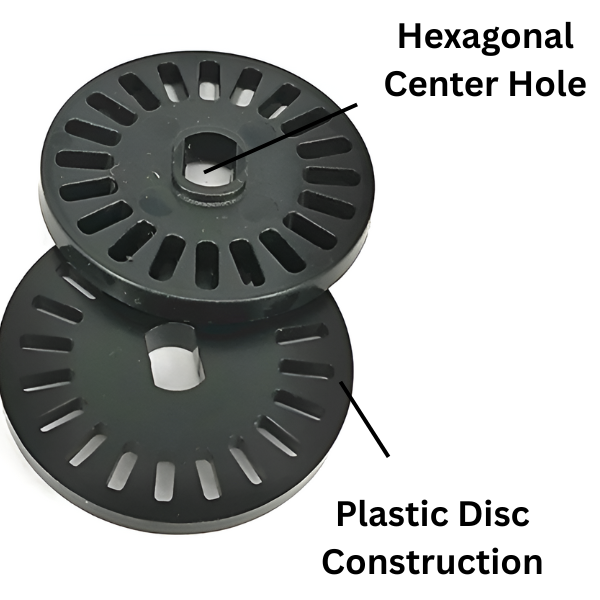

• Center Hole Dimensions: Approximately 5.5 mm x 3.5 mm
• Material: Black acrylic or plastic
• Number of Grids (Slots): 20
