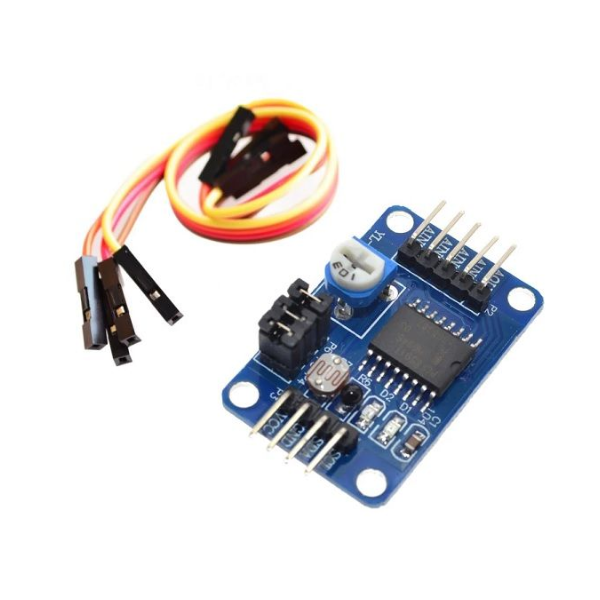

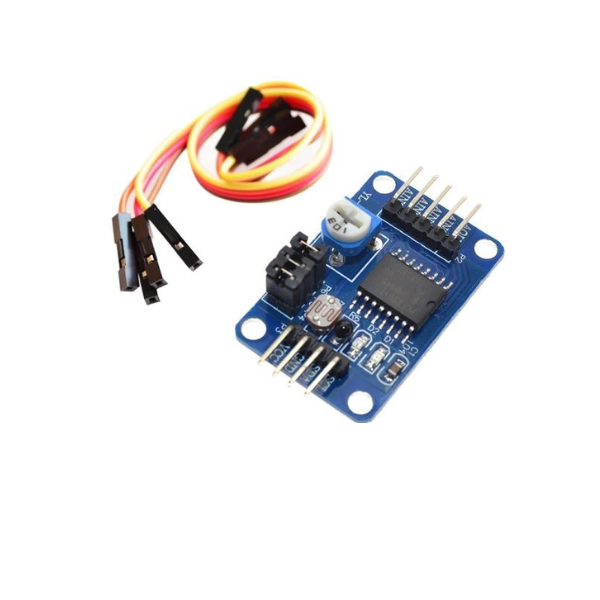

PCF8591 AD / DA Conversion of to Digital Converter Module Generic

This is a breakout board/Prototype Board for PCF8591 IC. The PCF8591 is a single-chip, single‑supply low‑power 8‑bit CMOS data acquisition device with four analog inputs, one analog output, and a serial I²C‑bus interface. Three address pins A0, A1, and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I²C‑bus without additional hardware. Address, control, and data to and from the device are transferred serially via the two-line bidirectional I²C‑bus. The functions of the device include analog input multiplexing, on-chip track and hold function, 8-bit analog‑to‑digital conversion, and an 8‑bit digital‑to‑analog conversion. The maximum conversion rate is given by the maximum speed of the I²C-bus.

Single power supply

voltage range of 2.5V-6V

Low standby current

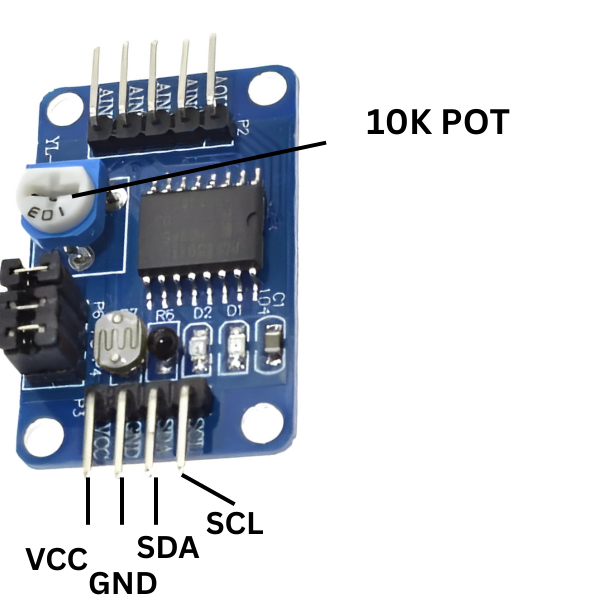

PCF8591 by 3 hardware address pins

1 analog output DAC gain

Size: 3.6cm * 2.3cm

1 X  PCF8591 AD / DA Conversion of to Digital Converter Module Generic
