Category
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
Mfr
Littelfuse Inc.
Series
P6KE
Package
Tape & Reel (TR)
Cut Tape (CT)
Product Status
Active
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
12.8V
Voltage - Breakdown (Min)
14.3V
Voltage - Clamping (Max) @ Ipp
21.2V
Current - Peak Pulse (10/1000µs)
28.8A
Power - Peak Pulse
600W
Power Line Protection
No
Applications
General Purpose
Capacitance @ Frequency
-
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Through Hole

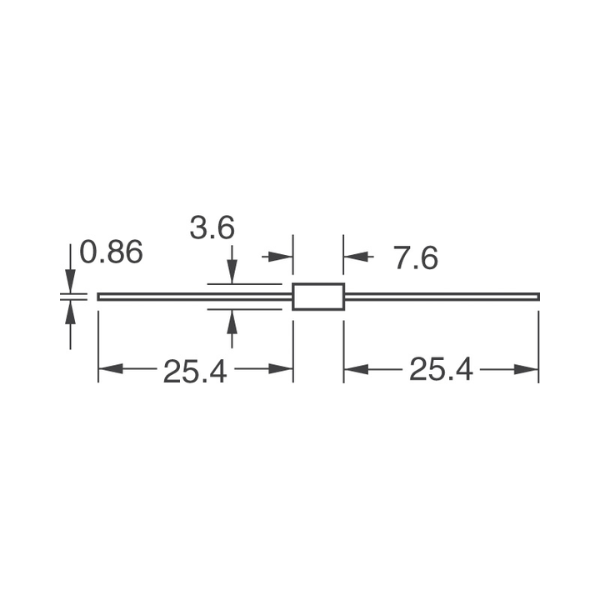

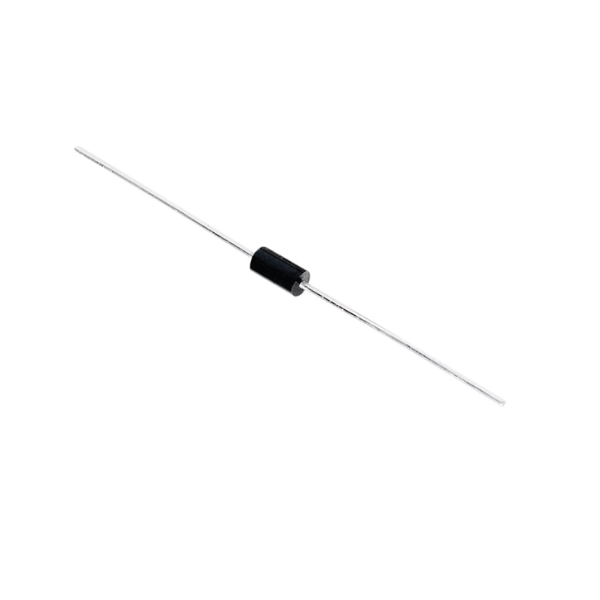

Package / Case
DO-204AC, DO-15, Axial
Supplier Device Package
DO-204AC (DO-15)
