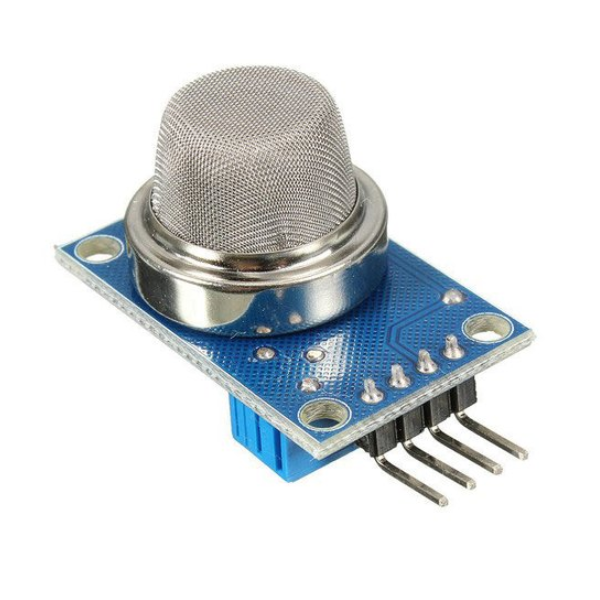

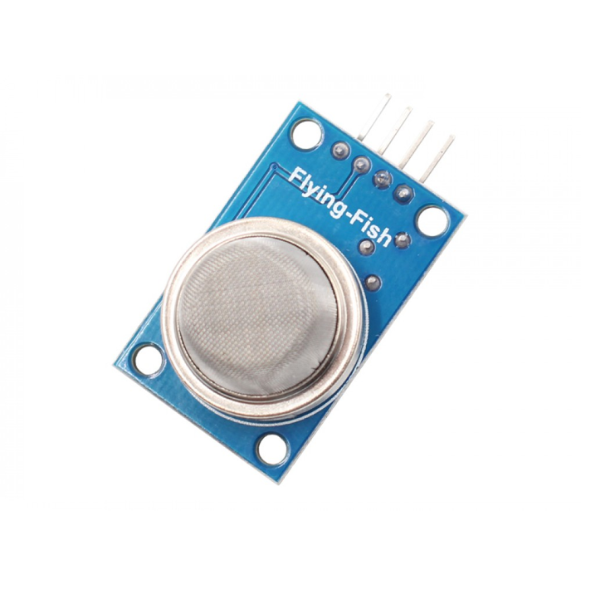

MQ-135 Air Quality & Hazardous Gas Sensor Module
(0 Reviews)
In stock
Category: Gas Sensors
SKU: 1483
MRP Price:
Discounted Price:
₹140
/pc
Share:
Sold By
DSM Online
(13 customer reviews)
Top Selling Products
-
Aluminium Heat Sink 75mm x 45mm
₹299₹158 -
ENC28J60 Ethernet LAN Network Module
₹799₹447
1.Sensitivity to Ammonia, Sulphide and Benzene steam.
2.Sensitive for benzene, alcohol, smoke.
3.Fast response and recovery.
4.Adjustable sensitivity.
5.Signal output indicator.
6.Output voltage boosts along with the concentration of the measured gases increases.
Description:
The MQ 135 Air Quality Detector Sensor Module For Arduino has lower conductivity in clean air. When the target combustible gas exists, the conductivity of the sensor is higher along with the gas concentration rising.
Convert change of conductivity to the corresponding output signal of gas concentration. The MQ135 gas sensor has a high sensitivity to Ammonia, Sulphide, and Benzene steam, also sensitive to smoke and other harmful gases.
It is with low cost and suitable for different applications such as harmful gases/smoke detection.
Features:
Sensitivity to Ammonia, Sulphide and Benzene steam
With signal output instructions
The TTL output signal is a low level
Analog 0 ~ 5 v voltage output, the higher the concentration, the higher the voltage
Color is showing pictures.
Sensitive for benzene, alcohol, smoke
Fast response and recovery

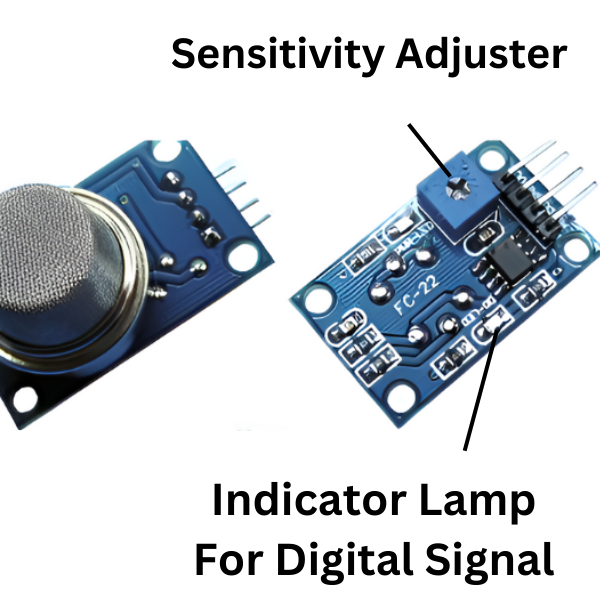

Adjustable sensitivity
Signal output indicator
Output voltage boosts along with the concentration of the measured gases increases.
Specifications:
IC Chip : MQ-135
Operating Voltage (VDC) :5
Detecting Range : 100ppm to 1000ppm
Package Include:
1 X MQ-135 Air Quality & Hazardous Gas Sensor Module.
