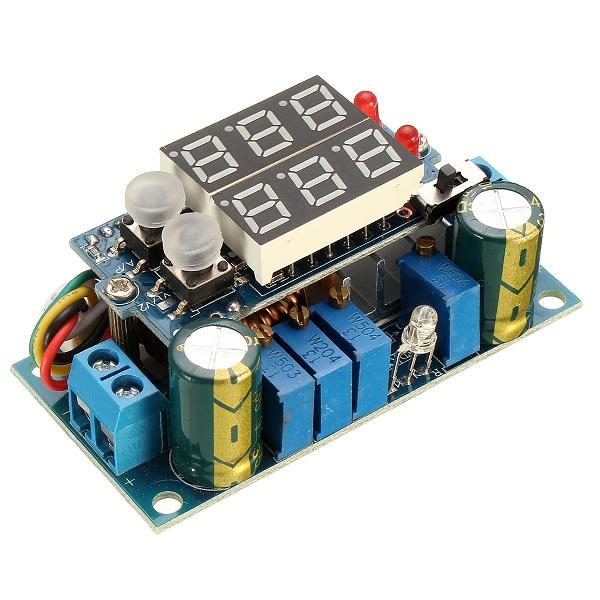

MPPT SOLAR PANEL CONTROLLER / CHARGER STEP DOWN CC/CV 5A

The MPPT Solar Panel Controller / Charger Step Down CC/CV 5A is a versatile device designed to optimize the power output of solar panels and efficiently charge batteries. It employs a Maximum Power Point Tracking (MPPT) algorithm to ensure that the solar panels are operating at their peak efficiency, maximizing power generation.

Key Features:

• MPPT Algorithm: Continuously tracks the maximum power point of the solar panel to ensure optimal energy harvesting.
• Step-Down Converter: Converts the higher voltage output of the solar panel to a lower voltage suitable for charging batteries.
• Constant Current (CC) and Constant Voltage (CV) Charging: Automatically adjusts the charging current and voltage to ensure efficient battery charging.
• 5A Output Current: Can charge batteries at a maximum current of 5 amps.
• Overvoltage, Overcurrent, and Short-Circuit Protection: Provides built-in protection mechanisms to safeguard the controller and connected devices.
• Temperature Compensation: Automatically adjusts charging parameters based on battery temperature for optimal performance.
• LCD Display: Many models feature an LCD display for easy monitoring of charging status, voltage, current, and temperature.

Applications:

• Solar Panel Charging: Charges batteries for various applications, including off-grid systems, portable devices, and backup power.
• Home Energy Systems: Powers homes and other buildings using solar energy.
• RV and Marine Applications: Provides power for recreational vehicles and marine equipment.
• Remote Locations: Supplies power to areas without grid access.

DATA SHEET AND USECASE

Key Specifications:

• Input Voltage: 6V to 36V
• Output Voltage: 1.25V to 32V, adjustable
• Output Current: 0.05A to 5A (default set to 3A)
• MPPT Voltage Setting Range: 6V to 36V
• Operating Frequency: 180kHz
• Conversion Efficiency: Up to 95%
• Operating Temperature: -40°C to +85°C
• Protections: Short circuit and over-temperature
• Module Dimensions: Approximately 60mm x 31mm x 22mm
