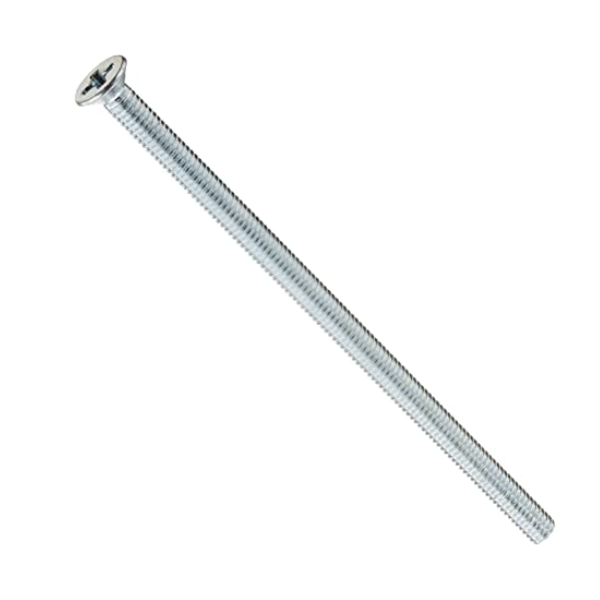

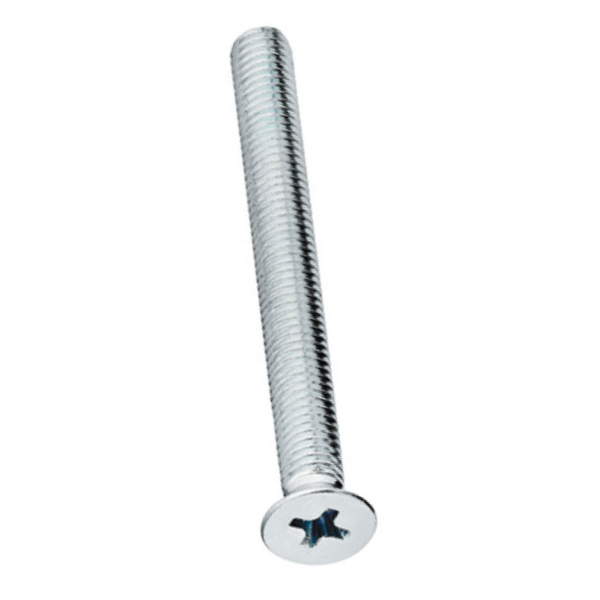

M4 50mm CSK Countersunk Philips Head Screws Pack 10

• Countersunk Head: The flat underside of the head ensures a flush fit against sheet materials.
• Phillips Drive: Provides a secure and reliable grip for easy installation.
• Zinc Plating: Protects against corrosion for long-lasting performance.
• High Torque Resistance: Allows for drilling with higher torques without risk of cam-outs.
• Versatile Applications: Suitable for a variety of applications, including electronics, tools, vehicles, and machinery.

• Size: M4
• Length: 50mm
• Head Type: Countersunk Phillips
• Finish: Zinc-plated
• Material: Mild Steel

DATA SHEET AND USECASE

Technical Specifications:

• Thread Diameter (d): 4mm (M4)
• Thread Pitch (P): 0.7mm
• Length (L): 50mm
• Head Diameter (dk): Approximately 8.4mm
• Head Height (k): Approximately 2.2mm
• Drive Type: Phillips (PH2)
• Material: Typically stainless steel (A2/A4) for corrosion resistance
• Standard: DIN 965H / ISO 7046-2
