Description:
Measure weight with precision using this high-quality load cell. Designed for easy integration with Arduino or Raspberry Pi, this load cell offers reliable performance and a wide range of applications.
Key Features:
- High Accuracy: Measures weight up to 300kg with a precision of 0.02.
- IP65 Protection: Resistant to water splashes from any direction for added durability.
- Simple Integration: Easily connect to Arduino or Raspberry Pi using the HX711 breakout board.
- Versatile Applications: Ideal for weighing scales, retail applications, bench scales, and counting scales.
Specifications:
- Type: Single Point Load Cell
- Rated Load: 300kg
- Excitation Voltage: 5-12V DC
- Operating Temperature: -20°C to +65°C
- Protection: IP65
Package Includes:

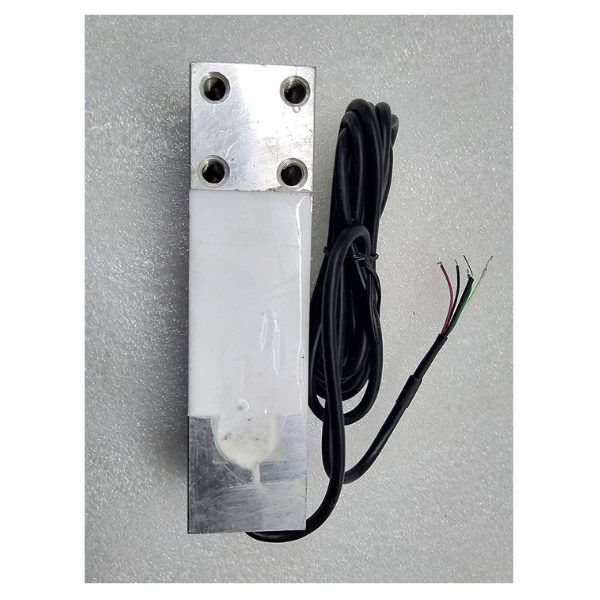

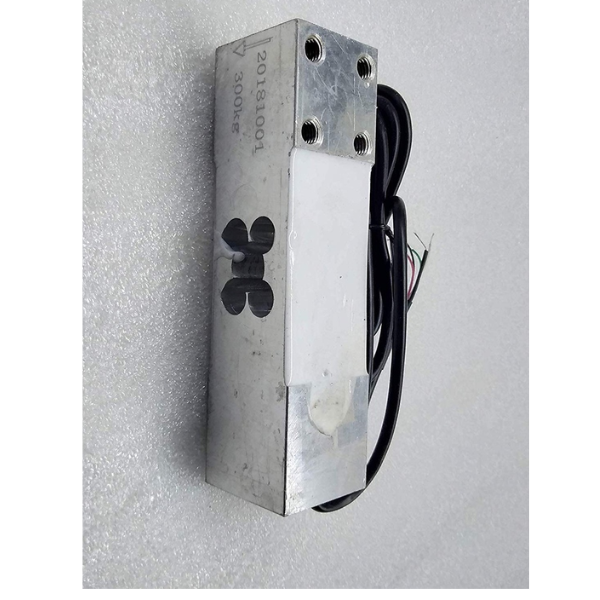

1 x Load Cell 300KG Table Top Wide Bar
HX711 Breakout Board
DATA SHEET AND USECASE
Key Features:
- Capacity: Up to 300 kg.
- Design: Wide bar configuration for enhanced stability.
- Material: Typically constructed from stainless steel or aluminum for durability and corrosion resistance.
- Accuracy: High precision with minimal error margins.
- Protection: Ingress protection ratings like IP65 or higher, ensuring resistance to dust and water.
