PRODUCT DESCRIPTION:

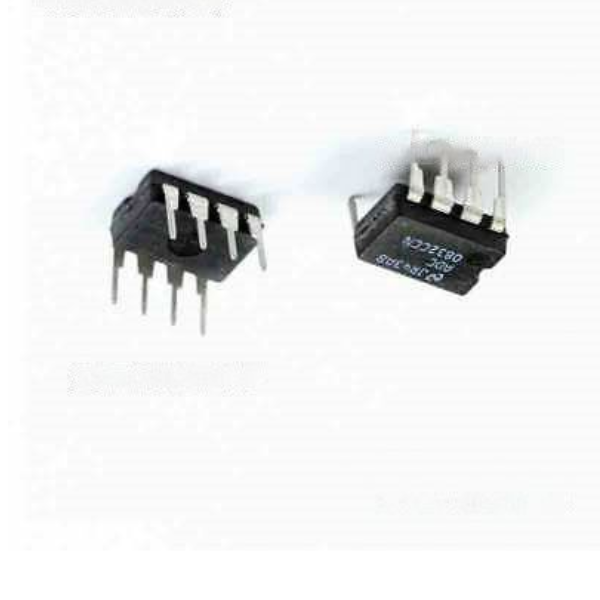

The ADC0831 series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels The serial I/O is configured to comply with the TI MICROWIRE serial data exchange standard for easy interface to the COPS family of processors, and can interface with standard shift registers or μPs.
FEATURES:
TI MICROWIRE Compatible—Direct Interface to COPS Family Processors
Easy Interface to All Microprocessors, or Operates “Stand-Alone”
Operates Ratiometrically or with 5 VDC Voltage Reference
No Zero or Full-Scale Adjust Required
2-, 4- or 8-Channel Multiplexer Options with Address Logic
0V to 5V Input Range with Single 5V Power Supply
Remote Operation with Serial Digital Data Link
TTL/MOS Input/Output Compatible
SPECIFICATION:
Resolution: 8 Bits
Total Unadjusted Error: ±½ LSB and ±1 LSB
Single Supply: 5 VDC
Low Power: 15 mW
Conversion Time: 32 μs
