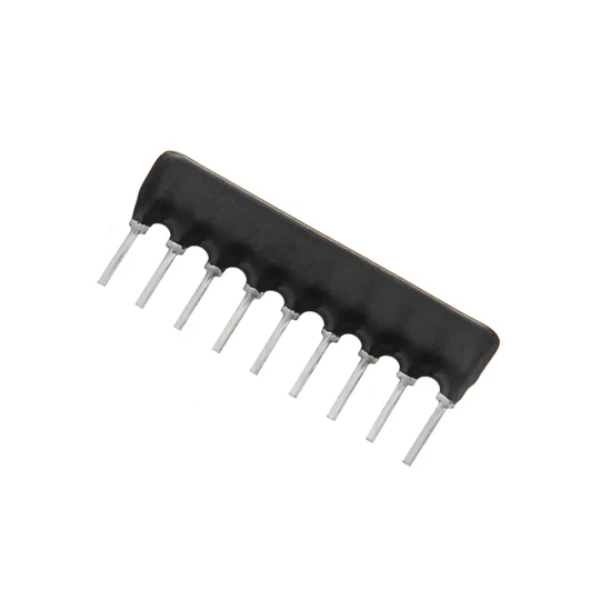

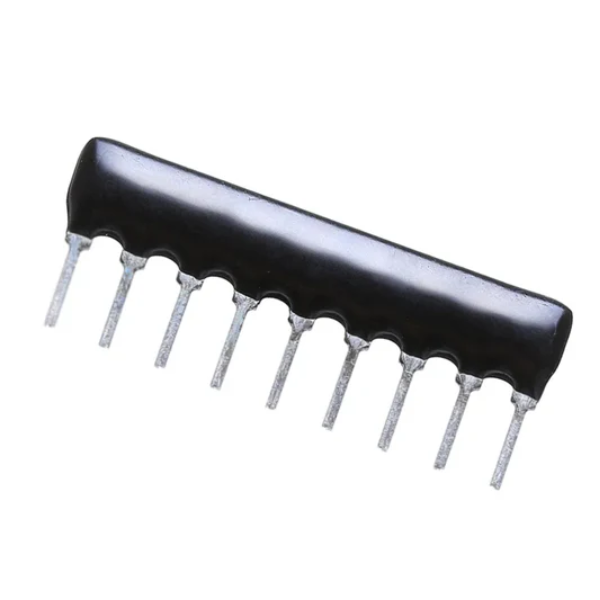

A09-103JP 10K ohm Resistor net 9 PIN (Pack of 10)

Compact and Versatile

This resistor network offers a convenient and space-saving solution for your electronic projects. It combines eight 10k ohm resistors into a single package, along with a common ground.

Key Features:

• 8 Resistors: Provides flexibility for various circuit designs
• 10k Ohm Resistance: Ideal for a wide range of applications
• Common Ground: Simplifies circuit connections
• Through-Hole Mounting: Easy integration into your PCBs
• Durable Construction: Built to withstand demanding conditions

Specifications:

• Resistance: 10k Ohms
• Tolerance: ±5%
• Maximum Working Voltage: 100V
• Maximum Overload Voltage: 150V
• Power Rating: 1/2 Watt
• Temperature Coefficient: ±200ppm/°C
• Operating Temperature: -55°C to 155°C
• Mounting Type: Through-Hole
• Pins: 9

Applications:

• Electronics: Circuit design, prototyping, and production
• DIY Projects: Create custom electronic gadgets and devices
• Industrial Applications: Machinery control, automation, and instrumentation

Package Includes:

10 X A09-103JP 10Kohm Resistor net 9 PIN

DATA SHEET AND USECASE

Key Specifications:

• Resistance Value: 10kΩ per resistor
• Number of Resistors: 8
• Configuration: Bussed (commoned)
• Tolerance: ±5%
• Power Rating: 125mW (0.125W) per resistor
• Temperature Coefficient: ±100ppm/°C
• Package Type: SIP-9 with 2.54mm pin spacing
• Dimensions: Approximately 8.5mm x 5.08mm x (2.54mm * (n-1) + 2.5mm)
