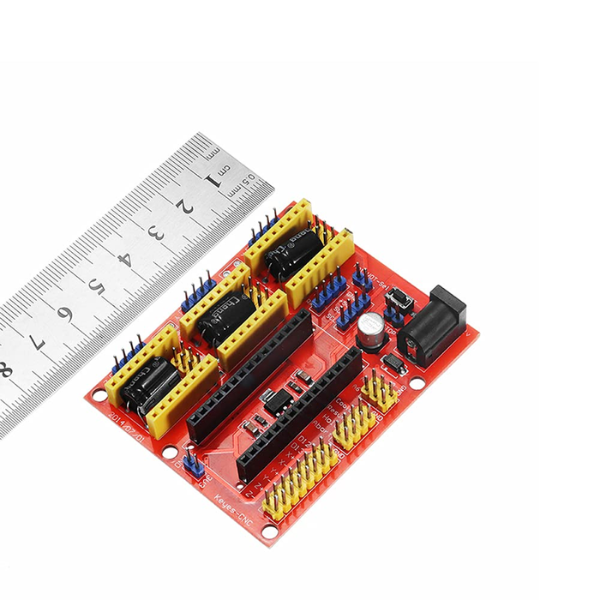

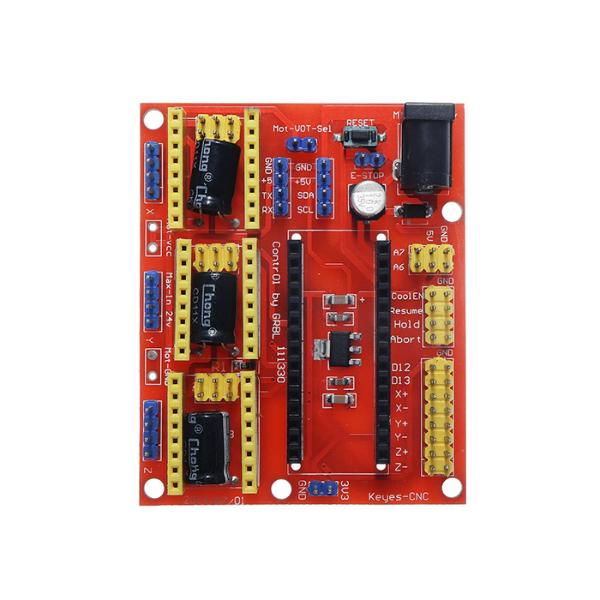

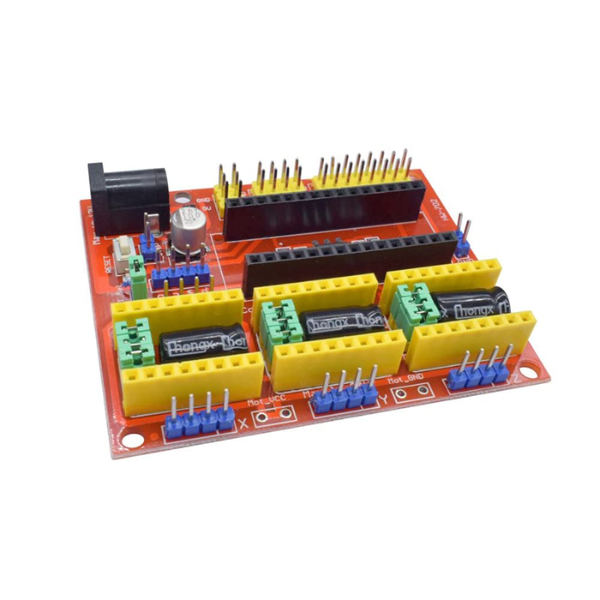

CNC Shield V4 for Engraving Machine 3D Printers Controller Board

PRODUCT DESCRIPTION:

CNC shield V4 needs to work with the nano board. It can be used as a driver’s expansion board for engraving machines and 3D printers. It has in total 3 channel slots for stepper motor driver modules (not included) for driving 3 channels of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports are sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.

FEATURES:

• 3 axis stepper motor driver.

• Compatible with a microdrive laser engraving machine, three-axis CNC engraving machine.

• 2A can be controlled within the two-phase four-wire stepper motor.

• Power DC5V interface, 7.5-12V voltage input.

• GRBL compatible.

• Worked with Arduino nano.

PACKAGE INCLUDE:

• 1 X CNC Shield V4 for Engraving Machine 3D Printers Controller Board
