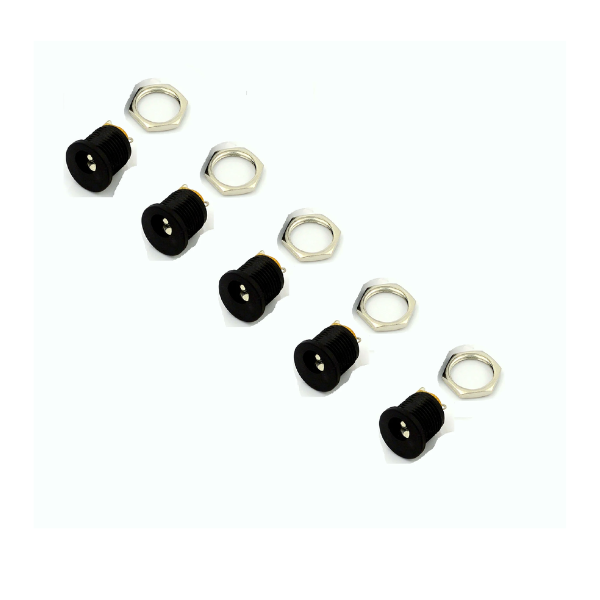

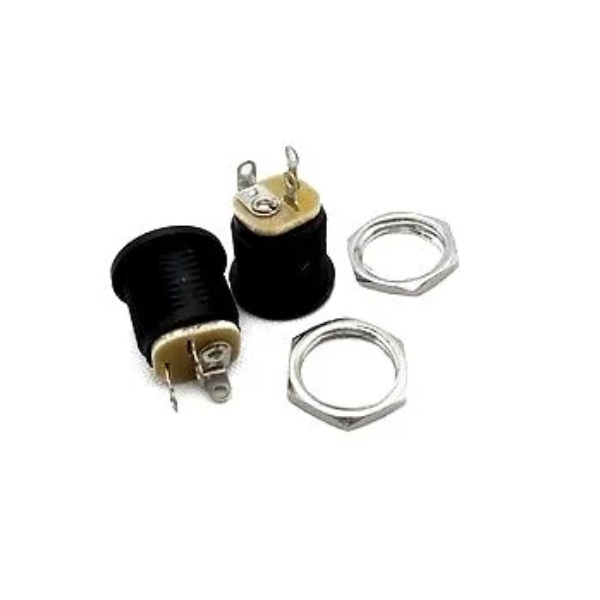

2.1×5.5mm DC Power Jack Socket Panel Mount (Female) – 5pcs

• Wide Compatibility: Suitable for a variety of applications requiring 12-30V DC power.
• Secure Connection: Features a tight-fitting plastic cover for a reliable connection with male plugs.
• Versatile Mounting: Includes a metal nut for easy panel mounting.
• Durable Construction: Built to withstand frequent use and provide long-lasting performance.
• Multiple Pin Options: Available with either 2.1mm or 2.5mm center pins to accommodate different male plugs.

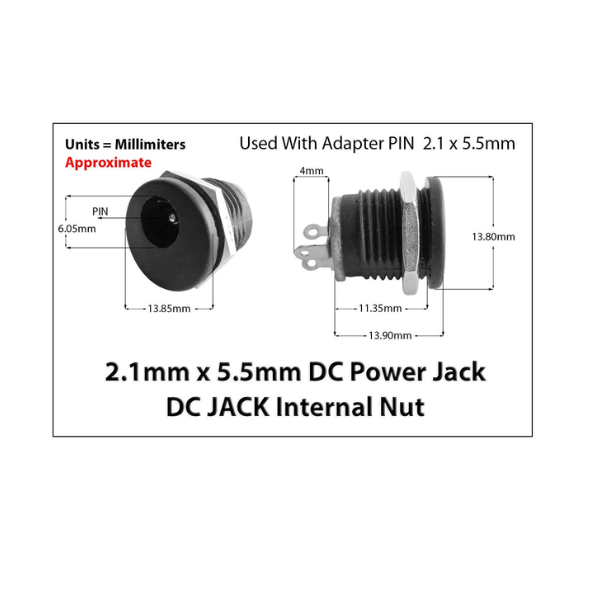

• Dimensions: 14mm diameter
• Center Pin: 2.1mm or 2.5mm (selectable)
• Mounting Type: Panel mount
• Material: Metal and plastic
• Voltage Rating: 12-30V DC

• Household appliances
• Electric tools
• Telecommunications equipment
• Machine tools
• Vessels
• Textile machinery
• Printing equipment
• Mining machinery
• Musical instruments
• And more!

DATA SHEET AND USECASE

Key Specifications:

• Mounting Style: Panel mount, allowing secure attachment to device enclosures.
• Contact Ratings: Typically up to 30 V DC at 1.0 A, suitable for low-voltage applications.
• Temperature Range: Operates effectively between -30 °C and +70 °C.
• Withstand Voltage: Can endure up to 500 V AC (50 Hz) for one minute.
